NS-205
ICP DAS
SKU: 02680700

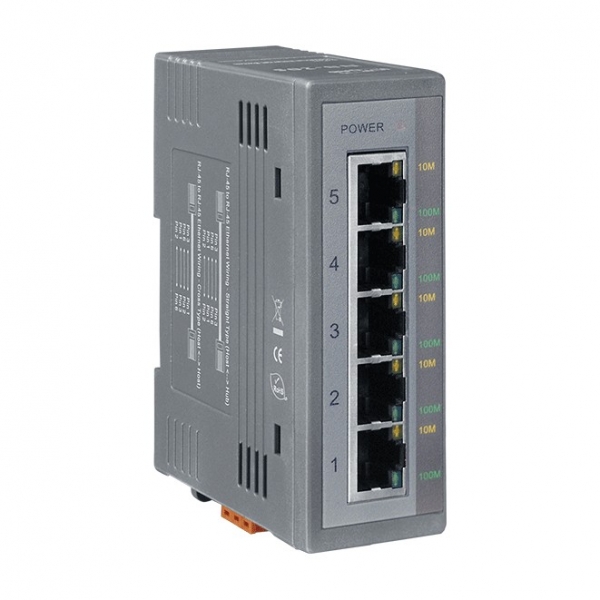

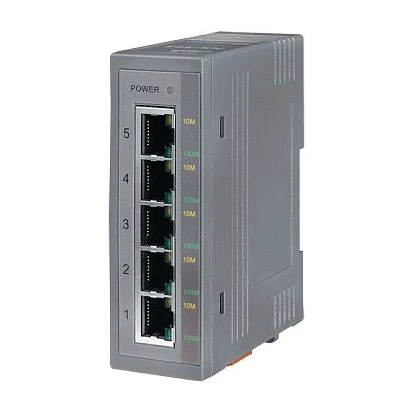

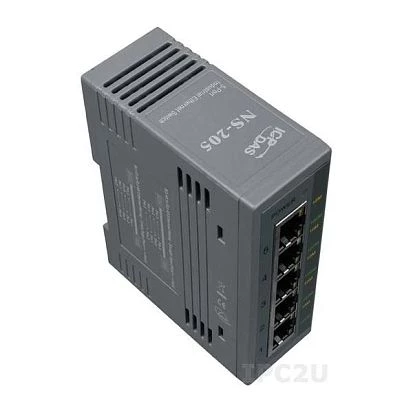

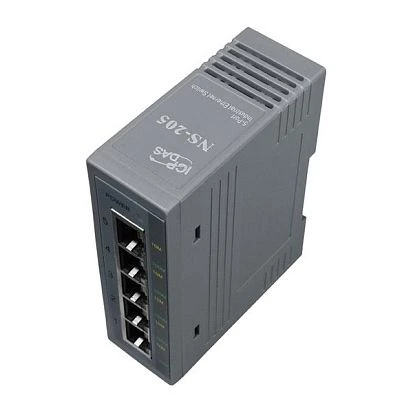

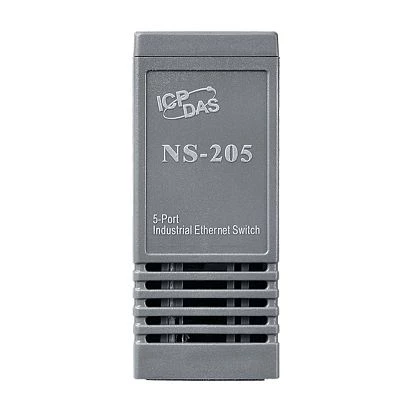

Industrial Smart Ethernet Switch with 5 10/100 Base-T Ports
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
10..30 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
33 mm
Depth
78 mm
Height
107 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.19 kg
Gross Weight
0.19 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
10..30 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
33 mm
Depth
78 mm
Height
107 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.19 kg
Gross Weight
0.19 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
10..30 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
33 mm
Depth
78 mm
Height
107 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.19 kg
Gross Weight
0.19 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
10..30 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
33 mm
Depth
78 mm
Height
107 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.19 kg
Gross Weight
0.19 kg
