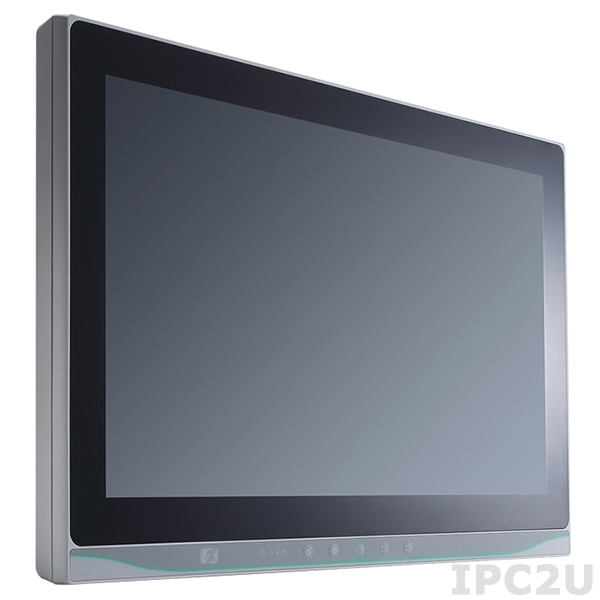

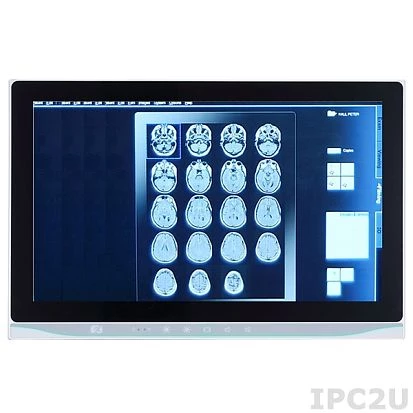

MPC153-834-FR-J
AXIOMTEK
SKU: 06960400
15" WXGA TFT Medical Grade Fanless Touch Panel PC, resistive touch screen, Intel Celeron J1900 2.0GHz, 1x204-pin SO-DIMM DDR3L, 1xHalf-Slim SSD, 1xCFast, 3xCOM, 2xGbE LAN, 2xUSB, 2xPCIe, Audio, power adapter 100-240V AC DC 60W
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Desktop, Wall, Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX1
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Brightness
300 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-232/422/485
2
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
CFast Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 2xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1
Dimensions and weight
Width
394.2 mm
Height
257.2 mm
Depth
57 mm
Operating Conditions
Operating Temperature
0..40 °C
Vibration
2 G, 10 ~ 500Hz, random for CFast
Standards and Certifications
Certifications
CE, FCC Class B
Medicine
EN 60601-1
Dimensions
Net Weight
3 kg
Gross Weight
5 kg
