MPC103-845-J
AXIOMTEK
SKU: 07967200

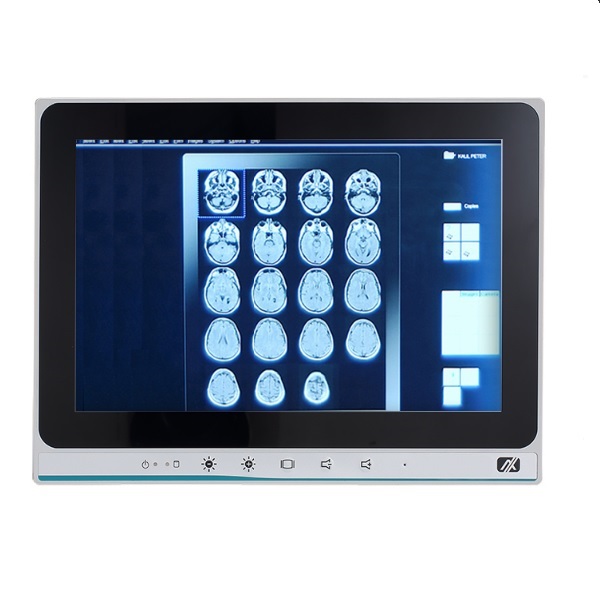

Fanelss 10.1" WXGA Medical Grade Touch Panel Computer w/Intel Celeron N3060 CPU, resistive touch screen, DDR3L SO-DIMM, SATA Half-Slim, 2xCOM, 2xUSB 2.0, 2xUSB 3.0, 2xGbe LAN, 2xPCIe Mini, Audio, 100...240 V AC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 75, Arm
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:9
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Celeron N3060
Max CPU frequency
2.48 GHz
Chipset
Chipset
Intel Braswell SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
3
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad, AT/ATX Switch
Connectors
Connectors
2xRJ45 Ethernet, 4xUSB, Line Out, Console Port RS-232 (DB9M)
System Power Input
Input Voltage AC
100..240 V
Power Consumption
40.32 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1, Windows 10
Dimensions and weight
Width
510 mm
Height
105 mm
Depth
385 mm
Operating Conditions
Operating Temperature
0..40 °C
Vibration
2G, 5 ~ 500Hz, random for SSD
Standards and Certifications
Certifications
CE, FCC
Medicine
EN 60601-1
Dimensions
Net Weight
3.2 kg
Gross Weight
4 kg
