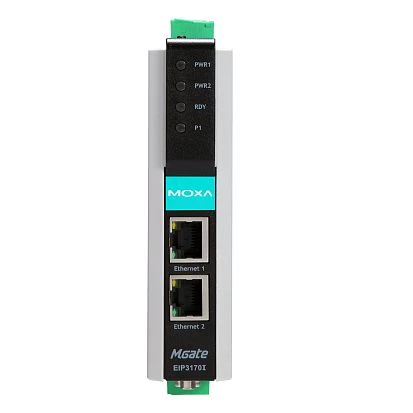

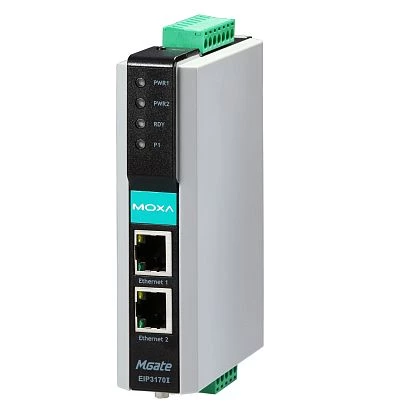

MGate EIP3170

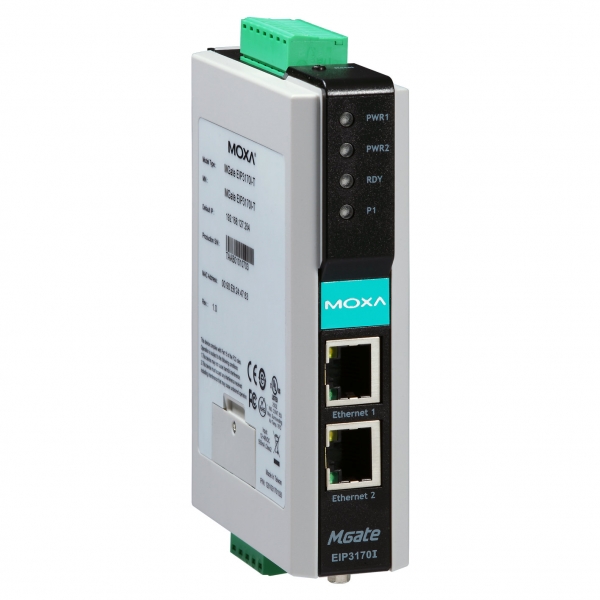

Network gateway MGate EIP3170 ensures connection of programmable industrial controllers that operate over a DF1 protocol (e.g. Allen Bradley) to high speed Ethernet/IP networks. The device houses a serial port of RS-232/422 standard (DF1 Full Duplex protocol) and two Ethernet ports with Auto MDI/MDIX interface and one IP address. The model is provided in a fanless housing and is equipped with a redundant power input. It is certified for operation in harsh industrial conditions: C1D2, ATEX Zone 2. 1-port converter MGate EIP3170: description and features: simultaneous connection of up to 16 Ethernet/IP servers and clients with 16 requests from each. ProCOM secures the remote access via virtual COM-ports. Ethernet paths cascading allows integrating several gateways, so that a separate switch is not needed. This improves the network flexibility, topology options and reduces costs. COM-port rate: 1200 bit/s…921.6 Kbit/s. Pull high/low resistors ensure the stable signal. There are DIP switches on a bottom panel for the resistance manual regulation. Serial Redirector redirects the master-device commands on a given port. The simultaneous operation of Serial and Ethernet/IP Masters is available. The network architecture change or reconfiguration is not required. A Windows utility with a built-in protocol traffic analyzer (Ethernet/IP, DF1), keeps log journal, records all commands and responses, helps to define the reasons for fails and bottle neck problems. The dual power input secures uninterruptible power supply within a range of 12…48 V DC. The device is protected from vibrations, voltage spikes, static discharges and impulse interference. Dimensions: 29х89х119. Mean time between failures (MTBF) – 24 year. Industrial converter MGate EIP3170 is capable of interacting with such SCADA systems, as RSLinx, thanks to the support of PCCC objects for Rockwell Automation networks. The opportunity for multiple connections ensures operation of complex large-scale control systems. High level of protection against physical and electromagnetic exposure is confirmed by the international certificates: IEC 60068-2, EN 55022/24, FCC 15B, EN 61000-4.
