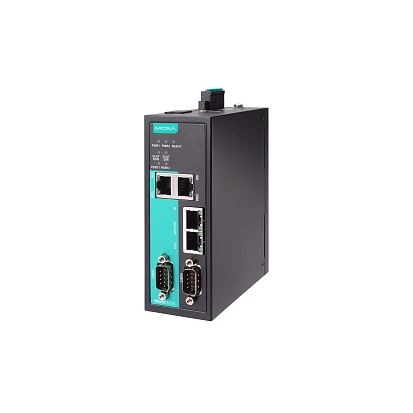

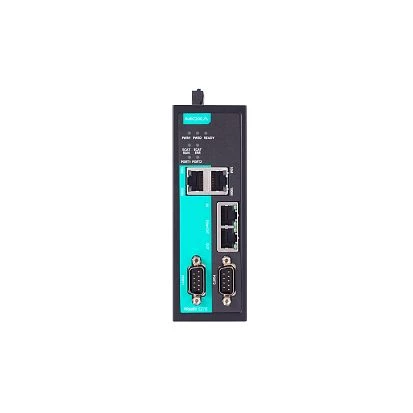

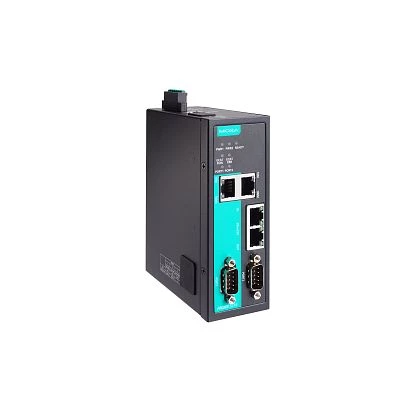

MGate 5216-T
MOXA
SKU: 11672000
2-port serial/Modbus-to-EtherCAT gateway, -40...+75C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
Isolation of COM Ports
2 kV (RS-232/422/485)
Supported Protocols
Industrial Protocols
EtherCAT slave, Modbus RTU master, Modbus ASCII master
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, TCP/IP, DHCP, ARP, DHCP Client, SNMP Trap
Security Protocols
HTTPS
LED / Controls
Setup of Operation Mode
Web-interface
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..60 °C
Humidity
5-95%
MTBF
2305846 h
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
45.8 mm
Depth
105 mm
Height
134 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 61000-6-2, EN 61000-6-4
Freefall
IEC 60068-2-32
Safety
EN 60950-1, EN 61010-2-201, IEC 62443-4-2
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.5 kg
Gross Weight
0.63 kg
