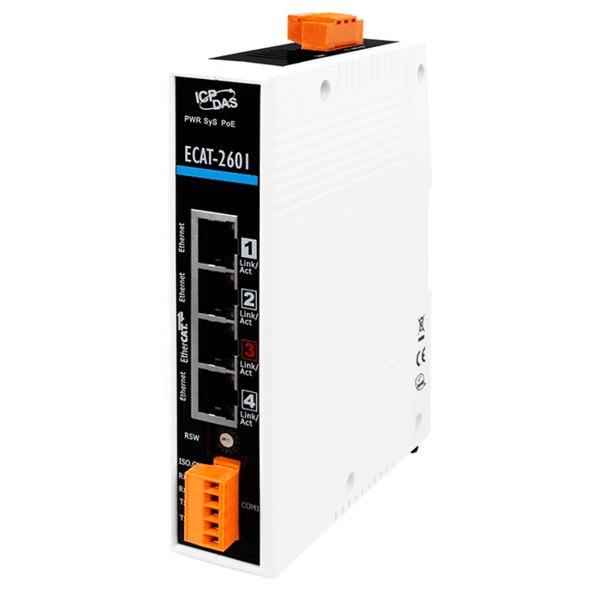

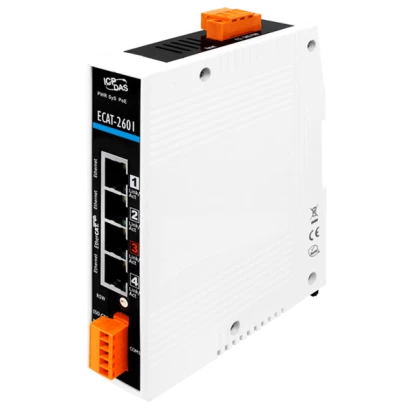

ECAT-2601
ICP DAS
SKU: 80332900
Modbus/OPC UA to EtherCAT Main Device Accelerator (RoHS), 3x100Base-TX, 1xPoE, 1x100Base-TX EtherCAT, 1xCOM, 24 VDC, Operating Temperature -25..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
3
10/100 Mbit/s
3
Interfaces
COM Total
1
RS-422/485
1
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU slave, Modbus UDP slave
Managment Protocols
HTTP, SNTP
Security Protocols
HTTPS
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
119 mm
Depth
31 mm
Height
157 mm
Dimensions
Net Weight
0.31 kg
Gross Weight
0.7 kg
