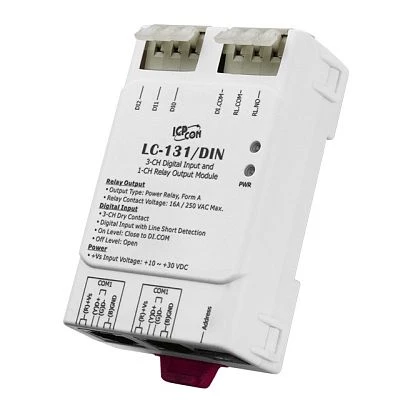

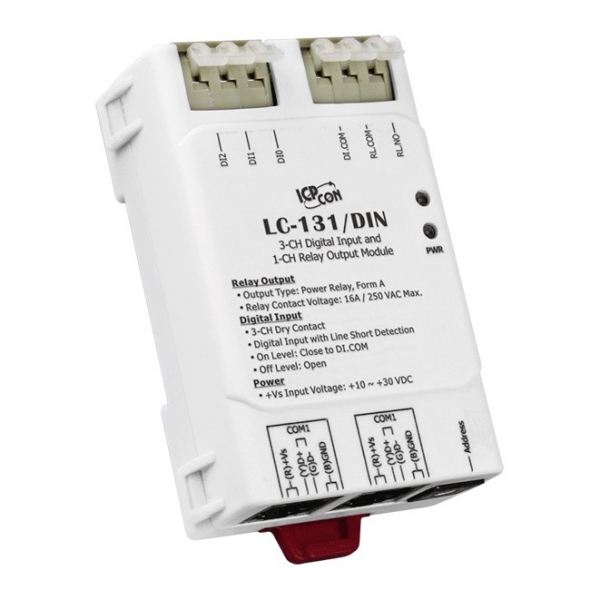

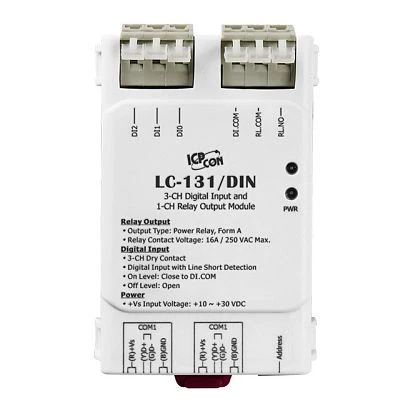

LC-131/DIN
ICP DAS
SKU: 66342700
3-channel Digital Input Module with Open/Short Detection and 1-channel Relay Output (DIN Rail mount) (RoHS)
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Interfaces
RS-485
1
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input
3
Type
Dry contact
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
1
Relay (Form A)
1
Contact rating of relay (Form A)
16A@250V AC, 10A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.35 kg
Documentation
