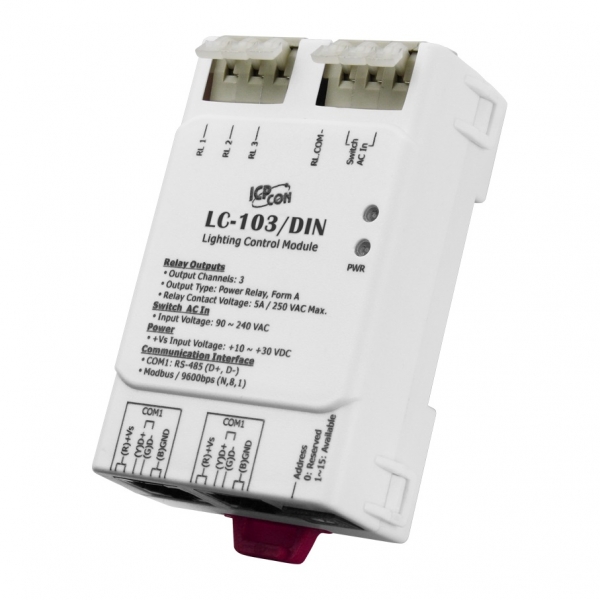

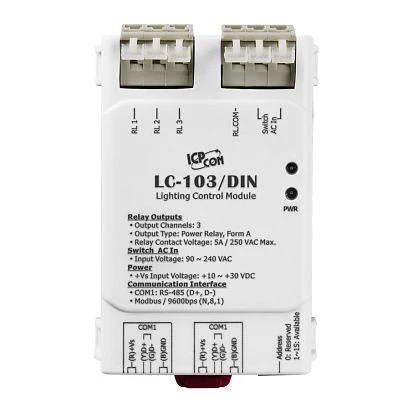

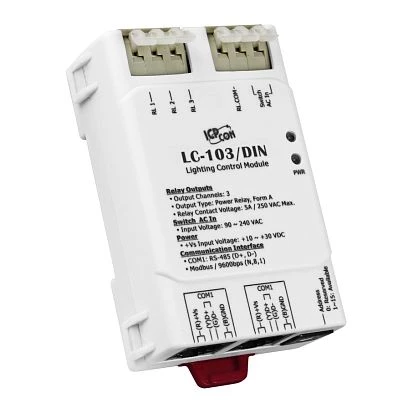

LC-103/DIN
ICP DAS
SKU: 07834200
1-channel AC Digital Input and 3-channel Relay Output Lighting Control Module
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Interfaces
RS-485
1
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input
1
Type
Wet contact
Level of Logic "0"
0~60 V
Level of Logic "1"
85~240 V
Isolation of Digital Input
5000 V
Digital Output
Total channels of digital output
3
Relay (Form A)
3
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.17 kg
Documentation
