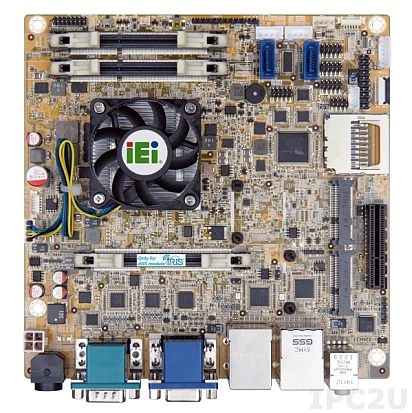

KINO-SE-i2-4241
IEI
SKU: 06798500
Mini-ITX SBC supports AMDR 28nm Quad-Core GX-424CC 1.0GHz (25W) on-board SoC with VGA/Dual GbE, Dual PCIe Mini, USB 3.0, SATA 6GB/s, iRIS-2400, audio and RoHS
End-of-life product
System Architecture
Form Factor
Mini-ITX
Construction
Type
Fan
CPU
Processor Installed
AMD G-Series GX-424CC
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR3, DDR3L
Socket Type
2xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, VGA
Ethernet
Controller Type
Intel i210-AT, Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
5
RS-232
4
RS-232/485
1
USB Total
6
USB 2.0
4
USB v3.x
2
Audio
Audio Controller
Realtek ALC892
Drive interfaces
mSATA
1
SD Slots
1
Extension Slots
Total
3
PCI Express x4
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 3, 10-pin DIO, TPM, 4-pin SMBus, 1x4-pin RS-422/485, 3x10-pin RS-232, 2x4-pin USB 2.0, iRIS-2400, 6-pin KB/MS, 4-pin ATX
Connectors
DB9, DB15 VGA, 2xHDMI, RJ45 Ethernet, 4xUSB, Audio, DC Input, RJ-45 (IPMI)
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.4 kg
Gross Weight
0.9 kg
