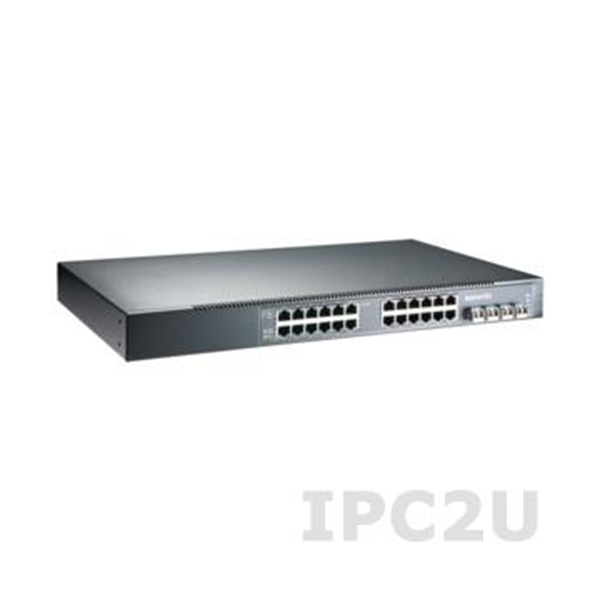

JetNet 6524G-DC48
KORENIX
SKU: 55227500
1U Rackmount Industrial Layer 3 Stackable Managed Gigabit Ethernet Switch with 4x1000Base-TX / 1000Base-FX (SFP Sockets) Combo Ports, 24x10/100/1000Base-TX, 2x10G CX4 Screw Type Stacking Connector, 36..60V DC-In
Price on request
Available on order
Available on order
Ethernet
10/100/1000 Mbit/s
24
Interfaces
RS-232
1
Switch Properties
Managed
Yes
Switch Level
Layer 3
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
2
Connectors
Connectors
DB9, RJ45 Ethernet
Construction
Mounting Configuration
Desktop, Panel, 19" Rackmount
Protection Level of Chassis
IP30
Height
1 U
Dimensions and weight
Width
440 mm
Depth
247 mm
Height
42.5 mm
Standards and Certifications
Certifications
FCC Class A
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6
Dimensions
Gross Weight
3.9 kg
