JetNet 3018G-v3
KORENIX
SKU: 56324900

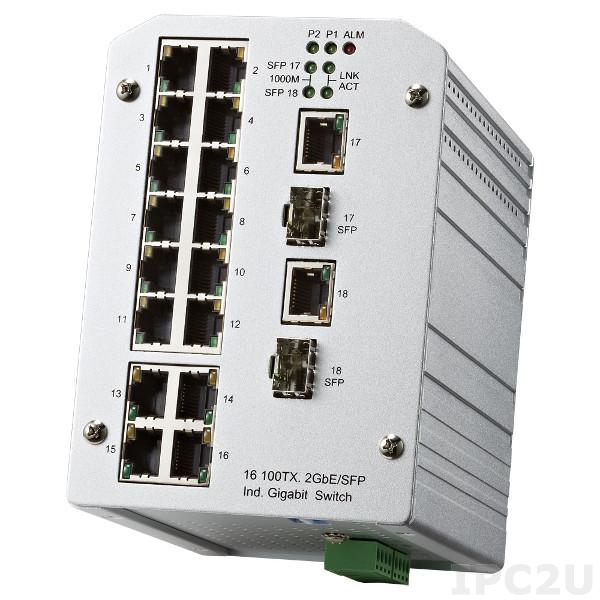

Korenix Industrial Unmanaged Gigabit Ethernet Rail-Switch with 16x10/100 Base-TX, 2x10/100/1000 Base-TX Combo with Hot Swappable, 2xSFP Gigabit Fiber Ports
Price on request
Available
Available
Ethernet
10/100 Mbit/s
16
10/100/1000 Mbit/s
2
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IPX1
Dimensions and weight
Width
96 mm
Depth
132 mm
Height
137.9 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-6, IEC 61000-4-8
Safety
UL 508
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
1.04 kg
Gross Weight
1.5 kg
