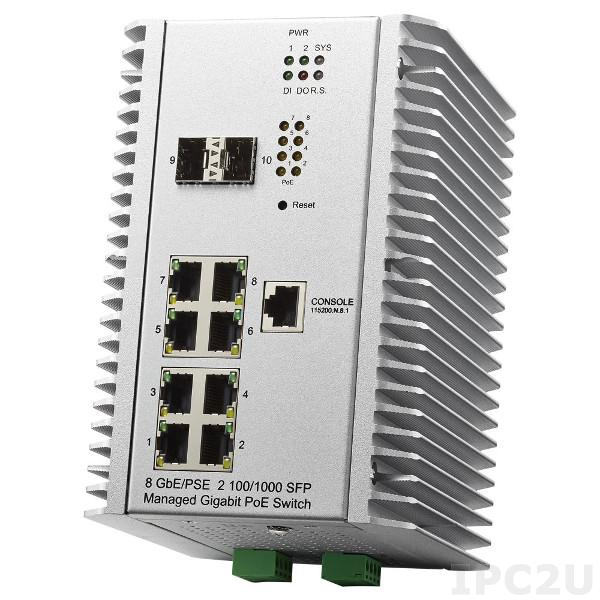

JetNet-7310G
KORENIX
SKU: 56532400
Korenix Industrial DIN-Rail Managed PoE Switch with 8x 1000 Base-TX PoE Ports, 2x1000 SFP ports, 46-57 VDC, -40...+75C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
Managed
Yes
Switch Level
Layer 2, Layer 3
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop

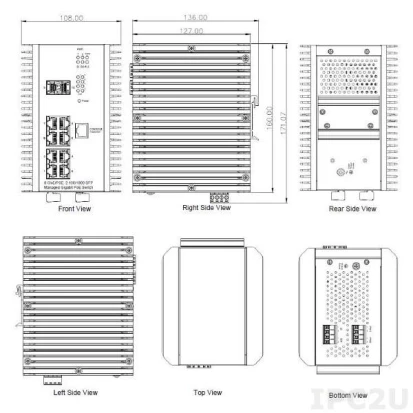

Dimensions and weight
Width
108 mm
Depth
136 mm
Height
160 mm
Standards and Certifications
EMS
EN 50121-1, EN 50121-2, EN 50121-4, EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
Managed
Yes
Switch Level
Layer 2, Layer 3
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Dimensions and weight
Width
108 mm
Depth
136 mm
Height
160 mm
Standards and Certifications
EMS
EN 50121-1, EN 50121-2, EN 50121-4, EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
Managed
Yes
Switch Level
Layer 2, Layer 3
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Dimensions and weight
Width
108 mm
Depth
136 mm
Height
160 mm
Standards and Certifications
EMS
EN 50121-1, EN 50121-2, EN 50121-4, EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
Managed
Yes
Switch Level
Layer 2, Layer 3
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Dimensions and weight
Width
108 mm
Depth
136 mm
Height
160 mm
Standards and Certifications
EMS
EN 50121-1, EN 50121-2, EN 50121-4, EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
