JetNet-6910G-M12-LVDC
KORENIX
SKU: 56573100

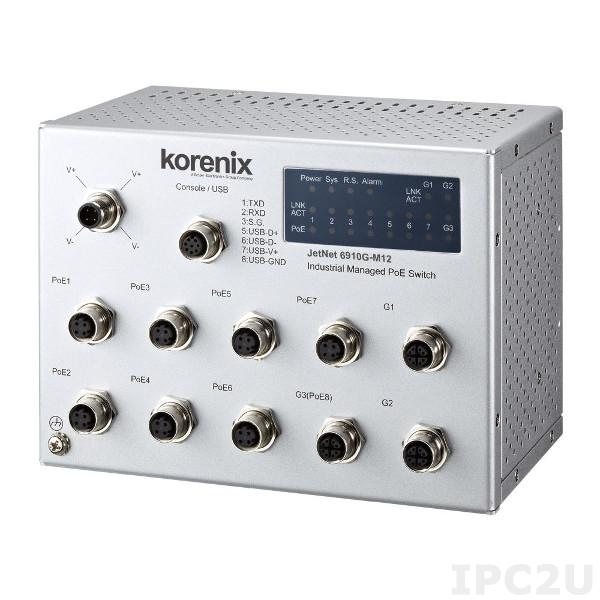

Korenix Industrial Managed Routing Switch with 7x 100 M12-D with PoE Ports, 1x M12-X GbE with PoE port, 2x GbE M12-X ports, 24VDC,100W PoE, -40...+75C Operating Temperature
Price on request
Available
Available
Ethernet
10/100 Mbit/s
7
Type 10/100 Mbit/s
M12
10/100/1000 Mbit/s
3
Type 10/100/1000 Mbit/s
M12
PoE 10/100 Mbit/s
8
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
145.2 mm
Depth
120 mm
Height
198 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMI
EN 61000-3-2, EN 61000-3-3
EMS
EN 50121-4, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9
Rolling Stock
EN 50155
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
