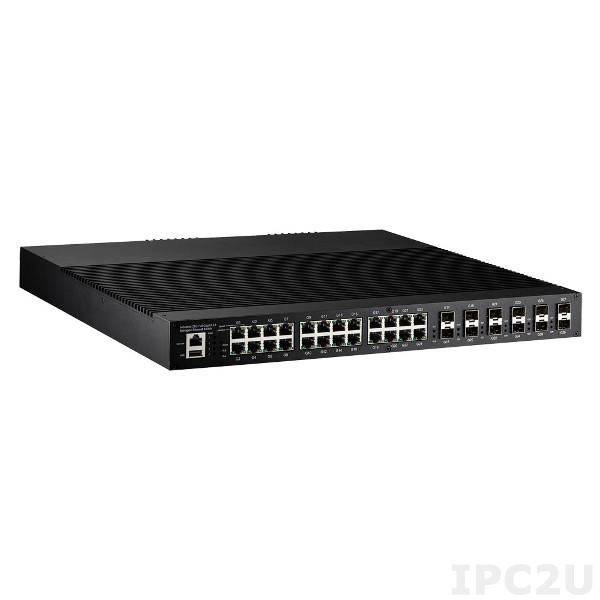

JetNet-6528Gf-ACDC24
KORENIX
SKU: 56571600
1U Rackmount Industrial Managed Layer 2+ Ethernet Switch with 24x1000 Base TX, 8x1000 RJ45/SFP Combo Ports, 4x1000 SFP, IEC61850, -40..+75C Operating Temperature, AC/DC
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
24
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Height
1 U
Dimensions and weight
Width
431 mm
Depth
375 mm
Height
44 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMI
EN 55022, EN 61000-3-2, EN 61000-3-3
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Rolling Stock
EN 50121-4
Safety
UL 60950-1
Vibration And Shock
IEC 60068-2-27
Dimensions
Gross Weight
2.65 kg
Ethernet
10/100/1000 Mbit/s
