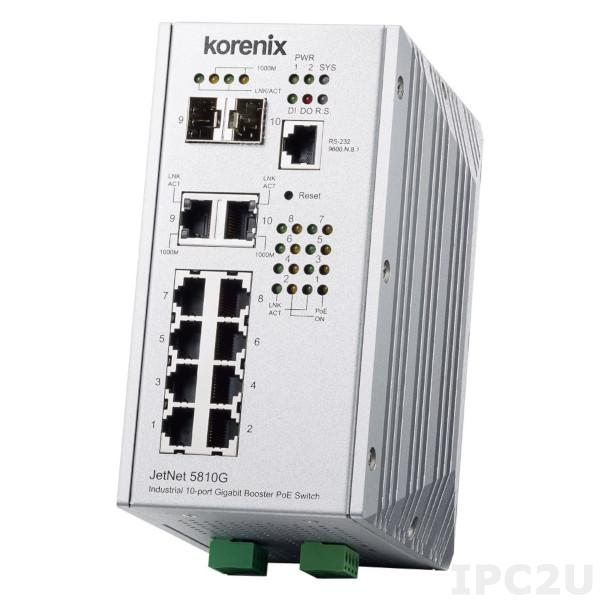

JetNet-5810G
KORENIX
SKU: 56913200
Korenix DIN-Rail Industrial Managed Gigabit Ethernet Ring Switch with 8x100Base-TX and 2x1000Base-TX /1000Base-FX Combo Ports (SFP Socket), Dual 24V DC, Wide Temperature Range -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
10
10/100 Mbit/s
8
Type 10/100 Mbit/s
M12
PoE/PoE+ 10/100 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
2
Power Budget
240 W
Switch Properties
Managed
Yes
Supported Protocols
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Connectors
Connectors
8xRJ45, DC Input
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IPX1
Dimensions and weight
Width
96.2 mm
Depth
132 mm
Height
159 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 50121-1, EN 50121-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Dimensions
Gross Weight
0.92 kg
