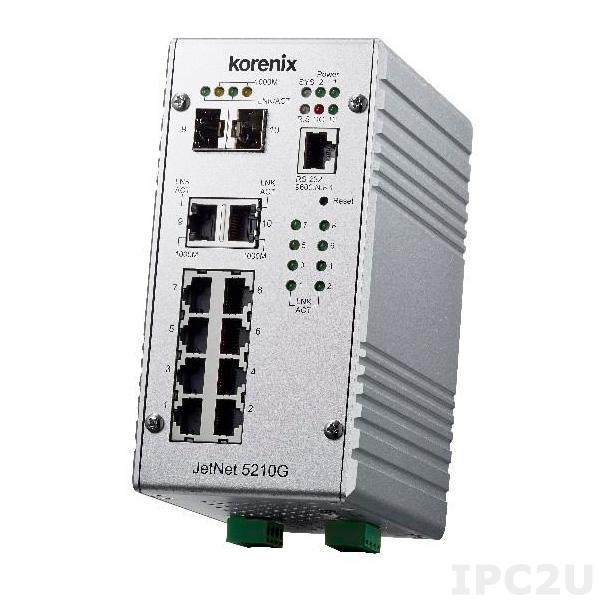

Jetnet-5210G
KORENIX
SKU: 56755400
Industrial DIN-Rail Managed Ethernet Switch with 8x100Mbps RJ45, 2x1000Mbps RJ45/SFP, Hi-Pot Isolation Protection, Redundant 10-36VDC Power Input, -40..+75C Operating Temperature, EN50121-4
Price on request
Available
Available
Ethernet
Total Ethernet
10
10/100 Mbit/s
8
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Interfaces
RS-232
1
Supported Protocols
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Heavy-Duty Steel Chassis, Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IPX1
Dimensions and weight
Width
160 mm
Depth
127 mm
Height
80 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Rolling Stock
EN 50121-4
Dimensions
Gross Weight
2 kg
Ethernet
