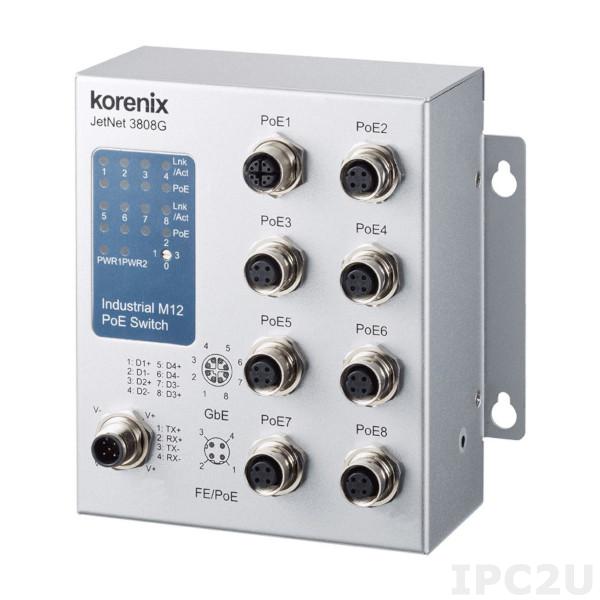

JetNet-3808G-M12
KORENIX
SKU: 56913000
Industrial Unmanaged PoE Booster Switch w/ 7x100Mbps PSE M12 D-code ports, 8/1x1000 Mbps PSE M12 X-code port, IEEE 802.3af/at, 120W PoE budget, 12-24V DC In, -40..+75C operation temp., EN50155, EN50121-4, eMark E13
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
7
Type 10/100 Mbit/s
M12
PoE+ 10/100/1000 Mbit/s
1
Power Budget
120 W
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Connectors
Connectors
8xRJ45, DC Input
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX1
Dimensions and weight
Width
116 mm
Depth
58 mm
Height
140 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 50121-1, EN 50121-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-2, EN 61000-6-4
Rolling Stock
EN 50121-4, EN 50155, EN 50121-3-2
Automotive
e13 Mark
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
8
10/100 Mbit/s
7
Type 10/100 Mbit/s
M12
PoE+ 10/100/1000 Mbit/s
1
Power Budget
120 W
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Connectors
Connectors
8xRJ45, DC Input
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX1
Dimensions and weight
Width
116 mm
Depth
58 mm
Height
140 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 50121-1, EN 50121-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-2, EN 61000-6-4
Rolling Stock
EN 50121-4, EN 50155, EN 50121-3-2
Automotive
e13 Mark
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
8
10/100 Mbit/s
7
Type 10/100 Mbit/s
M12
PoE+ 10/100/1000 Mbit/s
1
Power Budget
120 W
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Connectors
Connectors
8xRJ45, DC Input
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX1
Dimensions and weight
Width
116 mm
Depth
58 mm
Height
140 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 50121-1, EN 50121-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-2, EN 61000-6-4
Rolling Stock
EN 50121-4, EN 50155, EN 50121-3-2
Automotive
e13 Mark
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
8
10/100 Mbit/s
7
Type 10/100 Mbit/s
M12
PoE+ 10/100/1000 Mbit/s
1
Power Budget
120 W
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Connectors
Connectors
8xRJ45, DC Input
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX1
Dimensions and weight
Width
116 mm
Depth
58 mm
Height
140 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 50121-1, EN 50121-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-2, EN 61000-6-4
Rolling Stock
EN 50121-4, EN 50155, EN 50121-3-2
Automotive
e13 Mark
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
