JetNet-3005f-s
KORENIX
SKU: 03679600

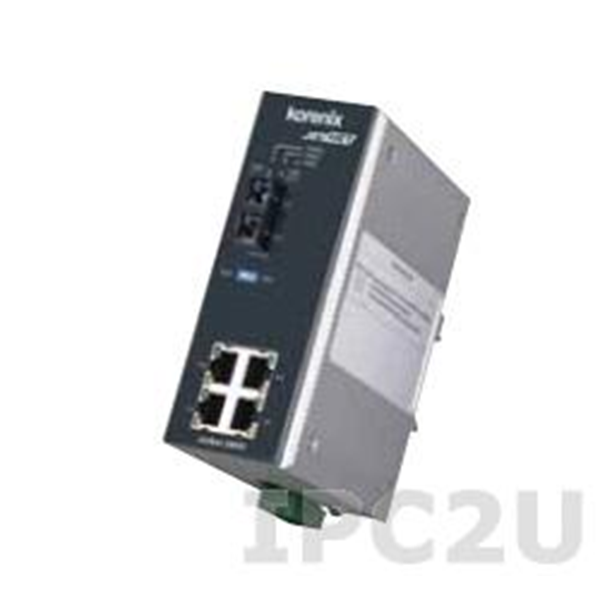

Industrial Redundant Ethernet Switch with 4x10/100Base-TX Ports, 1xSingle Mode (30km) 100Base-FX Port, SC Type Connector
Price on request
Available
Available
Ethernet
10/100 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
53 mm
Depth
105 mm
Height
135 mm
Standards and Certifications
Certifications
FCC Class A
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Safety
EN 60950, UL, cUL
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
Ethernet
10/100 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
53 mm
Depth
105 mm
Height
135 mm
Standards and Certifications
Certifications
FCC Class A
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Safety
EN 60950, UL, cUL
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
Ethernet
10/100 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
53 mm
Depth
105 mm
Height
135 mm
Standards and Certifications
Certifications
FCC Class A
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Safety
EN 60950, UL, cUL
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
Ethernet
10/100 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
53 mm
Depth
105 mm
Height
135 mm
Standards and Certifications
Certifications
FCC Class A
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Safety
EN 60950, UL, cUL
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
Get a Quote
