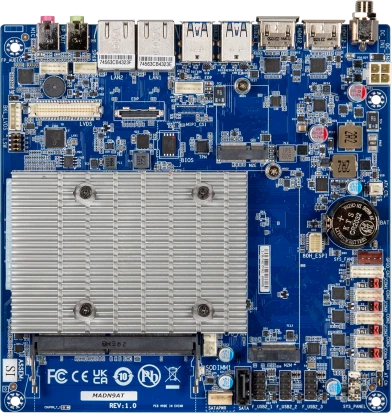

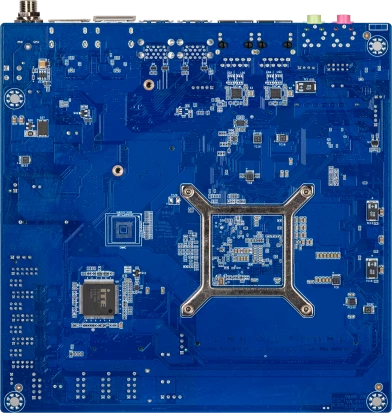

iTXL-N97A
GIGAIPC
SKU: 57819100
Mini-ITX Embedded Motherboard, Intel N97 3.6GHz CPU, Up to 32GB DDR4 RAM, 2xHDMI, LVDS, eDP, 2xGbE LAN, 1xSATA, 4xRS232/422/485, 4xUSB 3.2, 6xUSB 2.0 header, 2xM.2, 1x8-bit GPIO, Audio, 12-24VDC-in Power Jack, 0..+60C
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
Construction
Type
Fanless
CPU
Processor Installed
Intel N97
Socket
CPU onboard
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Interfaces
LVDS, 2xHDMI, eDP
Ethernet
Controller Type
Realtek RTL8111H
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-422/485
4
USB Total
10
USB 2.0
6
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC269
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-90%
Dimensions
Net Weight
0.75 kg
Gross Weight
1.15 kg
