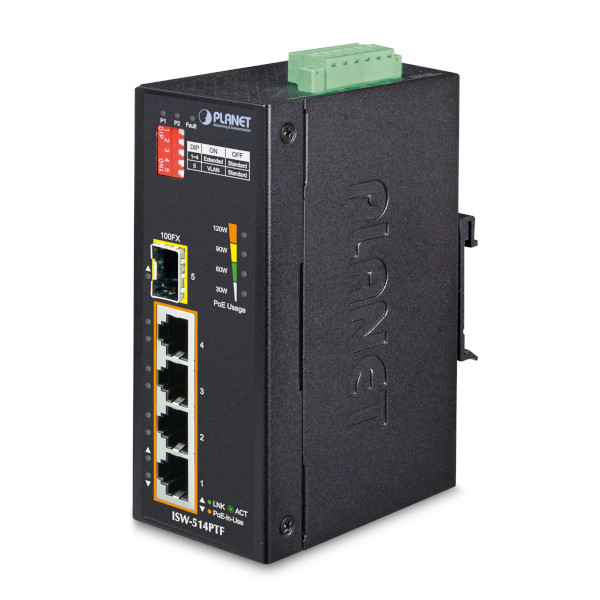

ISW-514PTF
Planet
SKU: 56809600
Industrial Power-over-Ethernet DIN-Rail Switch with 4x100Mbps 802.3at PoE+, 1x100Mbps SFP, 120W PoE budget, -40...+75C operating temperature, Dual redundant DC 12-48V Power Input
Price on request
Available
Available
Ethernet
SFP Fast Ethernet 100 Mbit/s
1
PoE 10/100 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.1X for Authentication, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Redundant power input
Yes
Input Voltage DC
24..48 V
Power Supply Reserve input Voltage DC
24..48 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
56 mm
Depth
135 mm
Height
87.8 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.8 kg
Gross Weight
1.1 kg
Ethernet
SFP Fast Ethernet 100 Mbit/s
1
PoE 10/100 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.1X for Authentication, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Redundant power input
Yes
Input Voltage DC
24..48 V
Power Supply Reserve input Voltage DC
24..48 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
56 mm
Depth
135 mm
Height
87.8 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.8 kg
Gross Weight
1.1 kg
Ethernet
SFP Fast Ethernet 100 Mbit/s
1
PoE 10/100 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.1X for Authentication, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Redundant power input
Yes
Input Voltage DC
24..48 V
Power Supply Reserve input Voltage DC
24..48 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
56 mm
Depth
135 mm
Height
87.8 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.8 kg
Gross Weight
1.1 kg
Ethernet
SFP Fast Ethernet 100 Mbit/s
1
PoE 10/100 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.1X for Authentication, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Redundant power input
Yes
Input Voltage DC
24..48 V
Power Supply Reserve input Voltage DC
24..48 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
56 mm
Depth
135 mm
Height
87.8 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.8 kg
Gross Weight
1.1 kg
