iSN-812-MTCP

iSN-812-MTCP

ICP DAS
SKU: 11635100

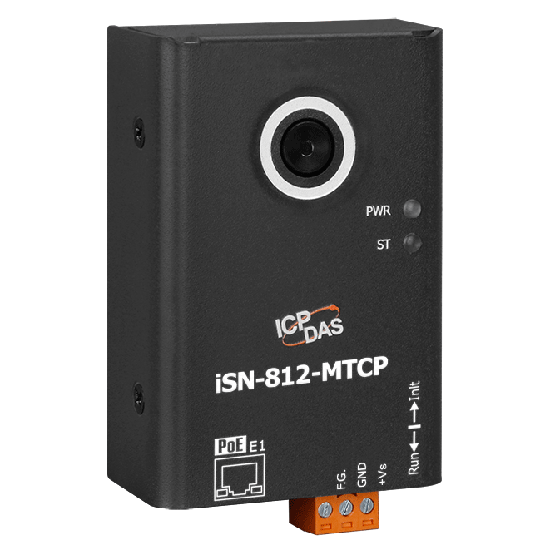

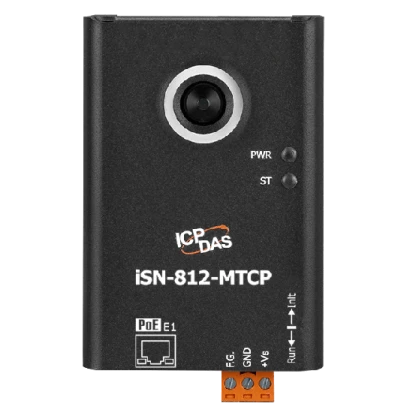

DIN Rail Temperature measurement with IR camera 768 Pixels (32x24), Integrated thermal imaging and field image, Range -40..+300C, PoE Ethernet, Modbus TCP, 10-30VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration

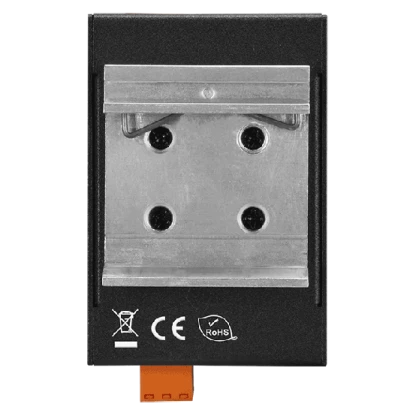

DIN-Rail mount
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client, RESTful API
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
System Power Input
Input Voltage DC
30..30 V
Sensors
Measuring Range
-40...+300 °C
Resolution
0.1 °C
Accuracy (+/-)
5 °C
Operating Conditions
Operating Temperature
-10..70 °C
Humidity
10-95%
Dimensions and weight
Width
52 mm
Depth
34 mm
Height
86 mm
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.1 kg
Gross Weight
0.15 kg

Documentation
iSN-81x Datasheet iSN-81x User manual
