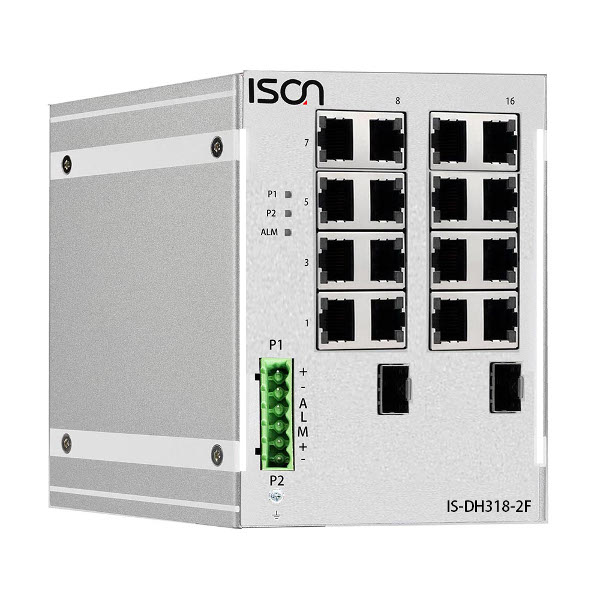

IS-DH318-2F
ISON
SKU: 56592400
Industrial DIN-Rail Unmanaged Layer 2 18-port Switch with 16x 100 Base-TX ports with 2x 1000 SFP slots , 2kV isolation, -40...+75C operating temperature, Dual 12-58V DC In
Price on request
Available
Available
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
SFP 100/1000 Mbit/s Ports
2
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
System Power Input
Redundant power input
Yes
Input Voltage DC
12..58 V
Power Supply Reserve input Voltage DC
12..58 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
