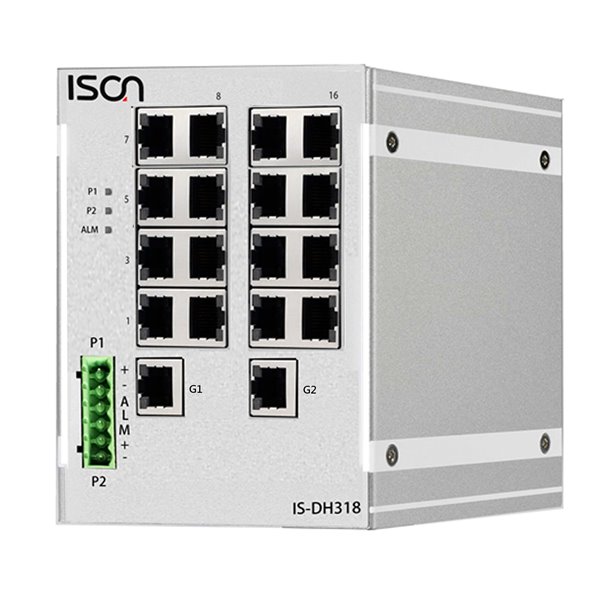

IS-DH318-1-PD
ISON
SKU: 56749400
Industrial Din-Rail Unmanaged 18-ports PoE Ethernet Switch with 16x100Mbps TX ports, 1x1000Mbps PD, 1x1000Mbps PSE port(PSB, Power Budget 60 Watts), Dual 12-58V DC-In, -40...+75 C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
2
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
12..58 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
138 mm
Depth
97.3 mm
Height
97.3 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15, CISPR 22 Class
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
