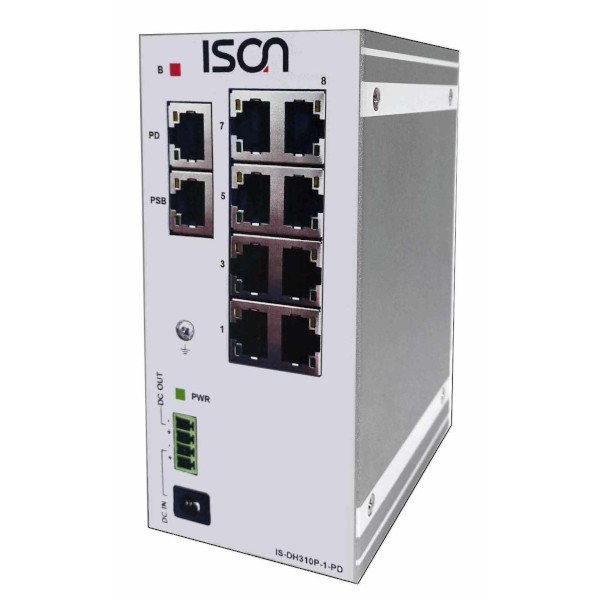

IS-DH310P-1-PD

IS-DH310P-1-PD Unmanaged Layer 2 Switch features 8xLAN RJ45 GbE, 1xPD, 1xPSE, Auto Negotiation, Half/Full Duplex, Daisy Chain The IS-DH310P-1-PD is a cost-efficient industrial layer 2 Ethernet switch with eight GbE LAN and Gigabit PD and PSE port. With a total of ten Gigabit Ethernet ports, the IS-DH310P-1-PD enables fast, convenient setup of a branched and complex IT infrastructure in different topologies such as star, tree or ring-shaped networking. For PoE devices, the Industrial Switch has a PD and a PSE port with support for powering multiple devices via daisy chain. Efficient Switch IS-DH310P-1-PD with ten Gigabit LAN is designed to meet the growing need for reliable and powerful hardware for the operation of complex and high-performance IT infrastructures. For this purpose, the Embedded Device offers eight regular 10/100/1000 Mbit / s TX Fast Ethernet ports with auto-negotiation of terminal transfer rate. Depending on the network and the configuration of the partner device, the IS-DH310P-1-PD supports full and half duplex for a maximum transmission speed for different connections. In addition to the standard LAN over RJ45, the Unmanaged Industrial Switch, with one PD and one PSE port each, provides two additional interfaces for own power supply and remote PoE devices. The IS-DH310P-1-PD provides support for multiple topologies With its PD Gigabit Ethernet port, the IS-DH310P-1-PD provides industrial switch power directly over a Gigabit uplink from a PoE + compatible switch, router or server. After deducting low self-consumption, the entire energy is available to another PoE device, which is connected via the PSE / PSB downlink. This makes it possible to daisy chain between numerous IS-DH310P-1 PDs that access one or more power sources and form complex and multi-redundant networks with each other and with other embedded computers, servers or IP devices. These features allow the Layer 2 switch to support all popular topologies, including simple branching, star and ring redundancy, or hierarchically structured trees. Reliable solution for industrial, scientific and commercial networks The multiple redundancy makes the IS-DH310P-1-PD an excellent solution for fail-safe networks with little effort and clear cable routing. Power can only be supplied via the PD port or via the DC input with 12 VDC to 58 VDC or for maximum operational safety via both sources. Due to a very high temperature tolerance of -40 ° Celsius to + 75 ° Celsius, the IS-DH310P-1-PD is fully suitable for operation in moisture protected outdoor locations. The Layer 2 Switch is widely used in branched networks including industrial production, IoT applications such as building automation and smart factories, but also in telecommunications, energy supply, in commercial infrastructure such as thin clients or in private or public research institutions.
