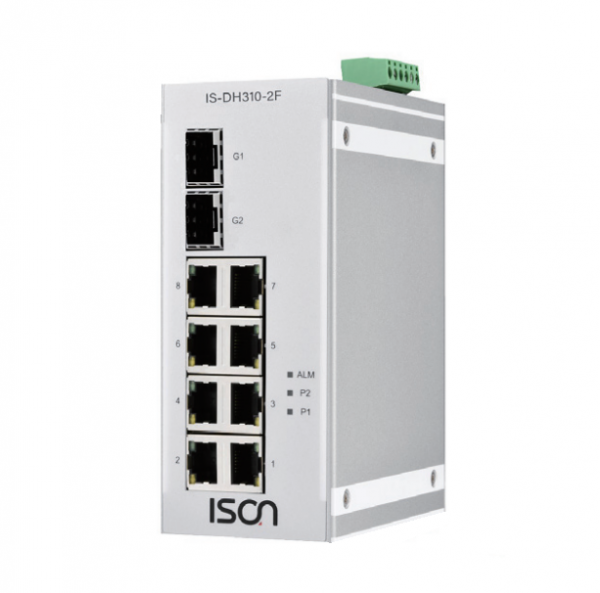

IS-DH310-2F
ISON
SKU: 56670000
Industrial Din-Rail Unmanaged Ethernet Layer 2 Switch with 8x 100 Mbps RJ45 Ports and 2x1000 Mbps SFP slot, 2kV surge immunity, Relay Output Alarm, 12...58V DC-in Redundant Power Input, -40...+75C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
10
10/100 Mbit/s
8
Type 10/100 Mbit/s
RJ-45
SFP 100/1000 Mbit/s Ports
2
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
12..58 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.55 kg
Gross Weight
0.65 kg
