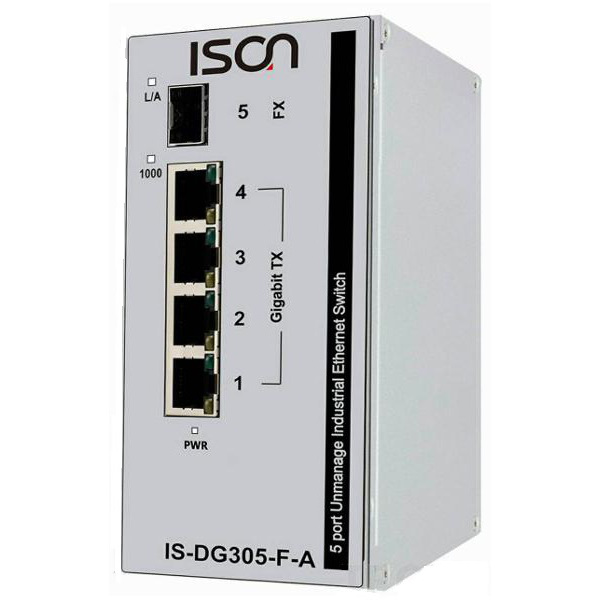

IS-DG305-F-A
ISON
SKU: 56591200
Industrial 5-port DIN-Rail Unmanaged Layer 2 Ethernet Switch with 4x 1000 Base-TX ports and 1x 1000 SFP port, -40...+75C operating temperature, 100/240V AC In
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
4
SFP 100/1000 Mbit/s Ports
1
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
System Power Input
Input Voltage AC
100..240 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
140 mm
Depth
91 mm
Height
60 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
