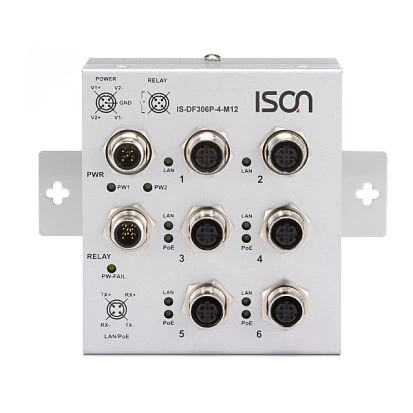

IS-DF306P-4-M12
ISON
SKU: 56342700
Industrial DIN-Rail Unmanaged 6-port M12 IEEE802.3af/at Power-over-Ethernet Switch with 4x 100 Base-TX ports, 4 PoE output, -40...+75C operating temperature, 24...56VDC Dual DC
Price on request
Available
Available
Ethernet
Total Ethernet
6
10/100 Mbit/s
4
Type 10/100 Mbit/s
M12
PoE/PoE+ 10/100 Mbit/s
4
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
24..56 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
