IS-DF306P-2F-4
ISON
SKU: 56341600

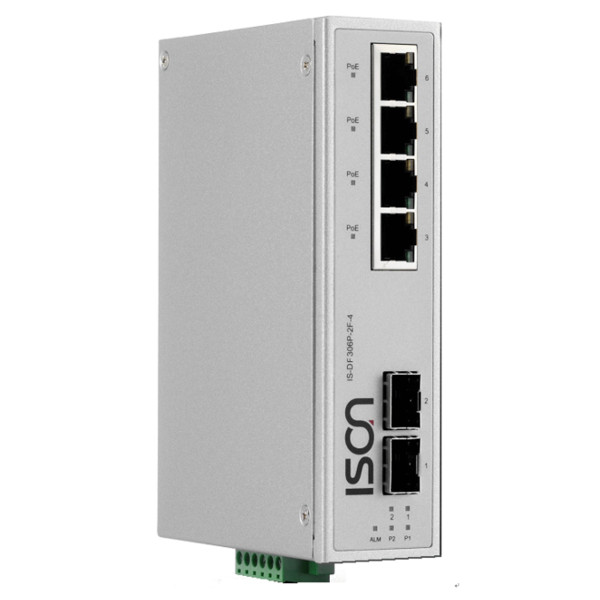

Industrial DIN-Rail Unmanaged 6-port IEEE802.3af/at Power-over-Ethernet Switch with 4x 100Base-TX ports and 2 100 FX SFP Slot, 4 PoE output(max. 30W per Port), -40...+75C operating temperature, Dual DC
Price on request
Available
Available
Ethernet
Total Ethernet
6
10/100 Mbit/s
4
SFP Fast Ethernet 100 Mbit/s
2
PoE/PoE+ 10/100 Mbit/s
4
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
46..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
36 mm
Depth
105 mm
Height
142 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.55 kg
Gross Weight
0.65 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
4
SFP Fast Ethernet 100 Mbit/s
2
PoE/PoE+ 10/100 Mbit/s
4
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
46..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
36 mm
Depth
105 mm
Height
142 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.55 kg
Gross Weight
0.65 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
4
SFP Fast Ethernet 100 Mbit/s
2
PoE/PoE+ 10/100 Mbit/s
4
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
46..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
36 mm
Depth
105 mm
Height
142 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.55 kg
Gross Weight
0.65 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
4
SFP Fast Ethernet 100 Mbit/s
2
PoE/PoE+ 10/100 Mbit/s
4
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
46..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
36 mm
Depth
105 mm
Height
142 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.55 kg
Gross Weight
0.65 kg
