iNS-306

iNS-306

ICP DAS
SKU: 09577900

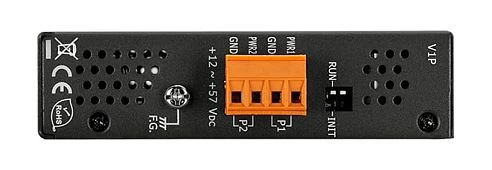

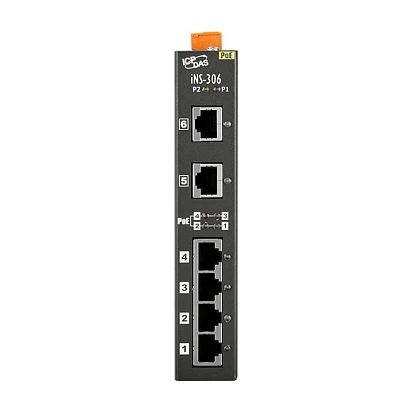

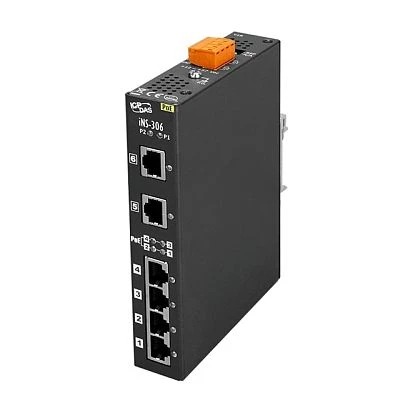

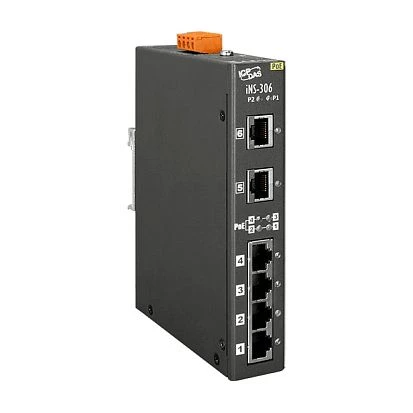

6-port 10/100 Mbps PoE(PSE) IoT Switch, 4 x PoE/PoE+ ports, 12-57 VDC
Price on request
Available
Available

Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
6xRJ-45
PoE 10/100 Mbit/s
4
Switch Properties
MAC Table Size
16000
Packet Buffer Size
4 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3az for Energy-Efficient Ethernet
LED / Controls
Setup of Operation Mode
Web-interface
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
28 mm
Depth
119 mm
Height
160 mm
Operating Conditions
Operating Temperature
-40..75 °C
Dimensions
Gross Weight
0.6 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
6xRJ-45
PoE 10/100 Mbit/s
4
Switch Properties
MAC Table Size
16000
Packet Buffer Size
4 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3az for Energy-Efficient Ethernet
LED / Controls
Setup of Operation Mode
Web-interface
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
28 mm
Depth
119 mm
Height
160 mm
Operating Conditions
Operating Temperature
-40..75 °C
Dimensions
Gross Weight
0.6 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
6xRJ-45
PoE 10/100 Mbit/s
4
Switch Properties
MAC Table Size
16000
Packet Buffer Size
4 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3az for Energy-Efficient Ethernet
LED / Controls
Setup of Operation Mode
Web-interface
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
28 mm
Depth
119 mm
Height
160 mm
Operating Conditions
Operating Temperature
-40..75 °C
Dimensions
Gross Weight
0.6 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
6xRJ-45
PoE 10/100 Mbit/s
4
Switch Properties
MAC Table Size
16000
Packet Buffer Size
4 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3az for Energy-Efficient Ethernet
LED / Controls
Setup of Operation Mode
Web-interface
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
28 mm
Depth
119 mm
Height
160 mm
Operating Conditions
Operating Temperature
-40..75 °C
Dimensions
Gross Weight
0.6 kg

Documentation
Datasheet iNS-306 User Manual iNS-306
Documentation
Datasheet iNS-306 User Manual iNS-306
Documentation
Datasheet iNS-306 User Manual iNS-306
Documentation
Datasheet iNS-306 User Manual iNS-306
