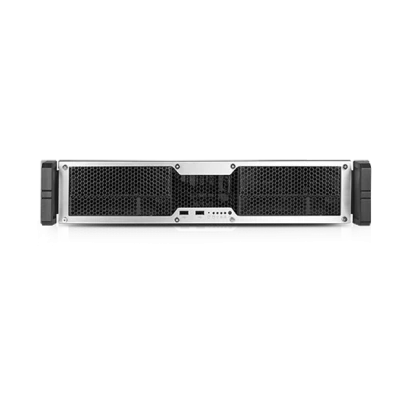

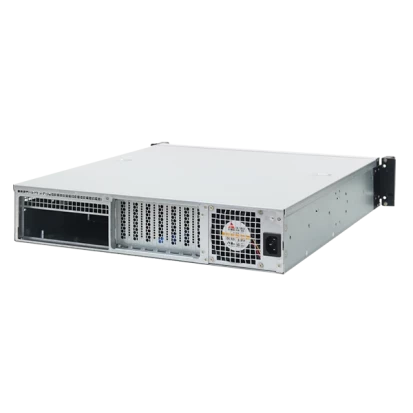

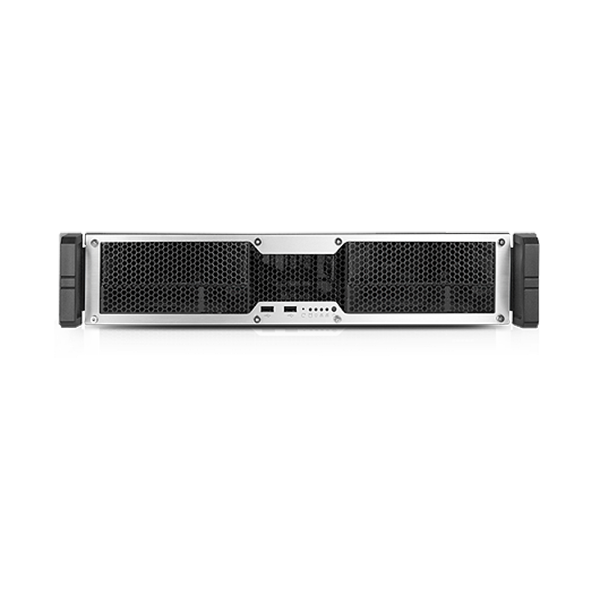

iKERN-2052-A600
Industrial Personal Computer 2U GmbH
SKU: 80028700
2U Industrial PC, Intel Core i5 14/13/12th Gen, 8GB DDR4 RAM (max.128GB), 256GB M.2 SSD 2280 M-key, HDMI/DP/VGA, 3x2.5Gbit LAN, 2xCOM (3xCOM option), 5xUSB3.2, 1xUSB-C, Low-Profile:1xPCIe x16, 4xPCIe x4, 2xPCI, 500W PSU
Price on request
Available
Available
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Desktop, 19" Rackmount
Height
2 U
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Processor Installed
Intel Core i5-14500
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Max CPU frequency
5 GHz
Chipset
Chipset
Intel W680
Memory
Form-factor
DDR5
Socket Type
4xDIMM
ECC
No
Registred
No
Default on Board Memory
8 GB
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i225V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
USB Total
8
USB 2.0
2
USB v3.x
6
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
8
RAID Levels
0, 1, 5, 10
M.2
3
Storage Cage
Number Of Cage External
5
3.5" Cage Intenal
2
5.25" Cage Internal
3
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
8
PCI Express x16
2
PCI Express x4
2
PCI
1
M.2
3
M.2 Form Factor
2280 M
LED / Controls
LED
1xHDD LED, Power LED
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
COM, USB 3.0
Connectors
DVI-D, HDMI, 2xRJ45 Ethernet, 7xUSB, Audio (in/out/Mic), AC Input, Display Port, USB type C
Power Supply
Type of Power Supply
ATX PS/2
Output Power
500 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
483 mm
Height
88 mm
Depth
430 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
12 kg
Gross Weight
20.5 kg
