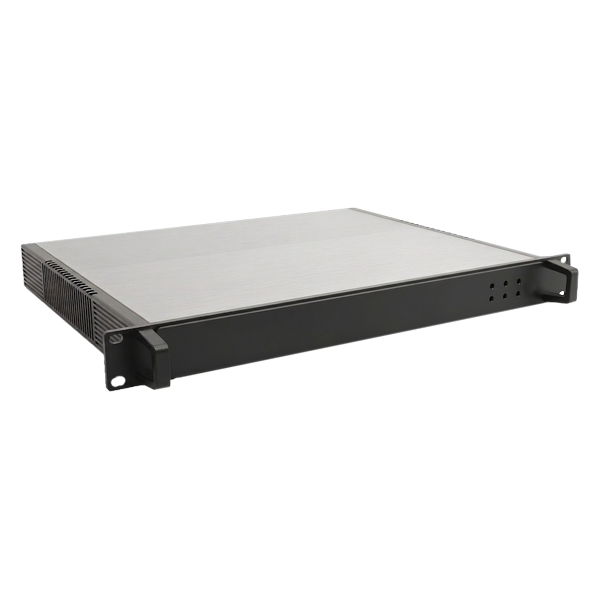

iKERN-1810-AC80
Industrial Personal Computer 2U GmbH
SKU: 80395800
1U Fanless 19" Rackmount PC iKERN-1810-AC80, Intel 2nd Gen Core Ultra 5 245T CPU, 8GB DDR5 RAM, 256GB NVMe SSD, DP, HDMI, 2x2.5GbE LAN, 4xUSB 3.2, 1xUSB-C DP alt., 4xCOM, 2xM.2 Key-B, 1xPCIe x16, 100-240VAC-in, 200W PSU
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, 19" Rackmount
Height
1 U
Type
Fanless
CPU
СPU Generation/Family
Arrow Lake
Processor Installed
Intel Core Ultra 5 225T
Socket
LGA1851
CPU Support Type
Core Ultra 5, Core Ultra 7, Core Ultra 9
Max CPU frequency
5.1 GHz
Chipset
Chipset
Intel Q870
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Interfaces
DisplayPort, HDMI, Type C DP
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
9
USB 2.0
4
USB v3.x
5
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Drive interfaces
SATA 3
4
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
4
PCI Express x16
1
M.2
3
M.2 Form Factor
2280 M, 3042 B, 2242 B
LED / Controls
Controls
On/Off
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xUSB 2.0, TPM, GPIO
Connectors
4xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, AC Input, Display Port, USB type C
Power Supply
Type of Power Supply
Internal
Output Power
200 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
483.7 mm
Height
44.3 mm
Depth
397.3 mm
Operating Conditions
Operating Temperature
0..45 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
7 kg
Gross Weight
8.5 kg
Documentation
