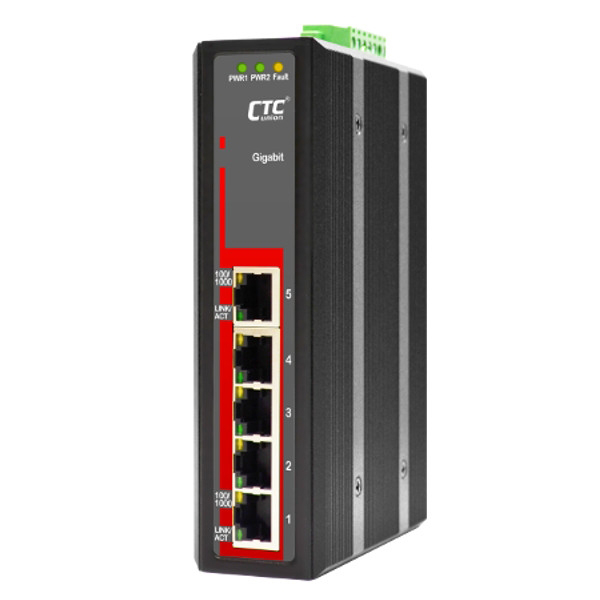

IGS-500

CTC Union
SKU: 56020100
Industrial Unmanaged Gigabit Ethernet Switch with 5x 1000 Base-T Ports, 9.6...60VDC-In, -10..+60C Operating Temperature
84,26 €
Price excl. VAT and shipping cost
Available
Available

Ethernet
10/100/1000 Mbit/s
5
Type 10/100/1000 Mbit/s
RJ-45
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Input Voltage AC
18..36 V
Power Supply Reserve input Voltage AC
18..36 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
31.6 mm
Depth
106 mm
Height
142 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Rolling Stock
EN 50121-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.41 kg
Gross Weight
1 kg
