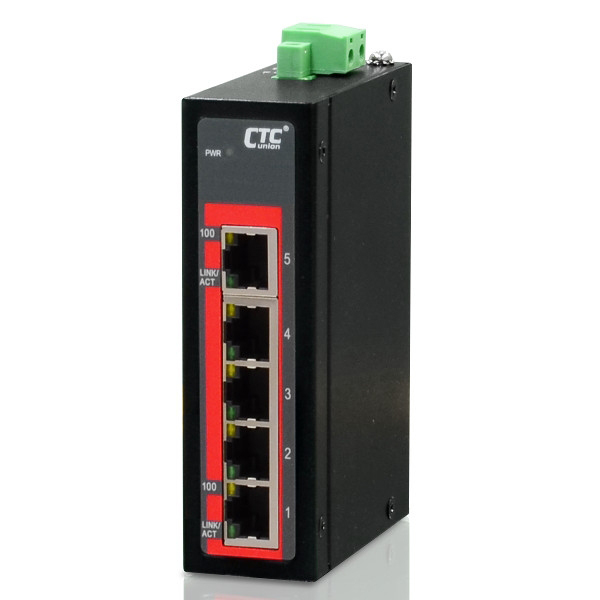

IFS-500C
CTC Union
SKU: 56125300
Industrial Unmanaged Compact Fast Ethernet Switch with 5x 100Base-TX Ports, 12/24/48VDC or 24VAC Input Power, -10..+60C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
9..60 V
Input Voltage AC
18..36 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
30 mm
Depth
70 mm
Height
103 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Rolling Stock
EN 50121-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.22 kg
Gross Weight
0.6 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
9..60 V
Input Voltage AC
18..36 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
30 mm
Depth
70 mm
Height
103 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Rolling Stock
EN 50121-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.22 kg
Gross Weight
0.6 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
9..60 V
Input Voltage AC
18..36 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
30 mm
Depth
70 mm
Height
103 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Rolling Stock
EN 50121-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.22 kg
Gross Weight
0.6 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
9..60 V
Input Voltage AC
18..36 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
30 mm
Depth
70 mm
Height
103 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Rolling Stock
EN 50121-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.22 kg
Gross Weight
0.6 kg
