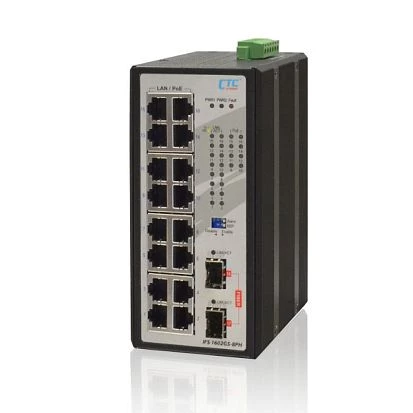

IFS-1602GS-8PH
CTC Union
SKU: 56511200
Industrial Unmanaged Fast Ethernet Switch with 16x 100 Base-T with 8xPoE+ ports, 2x 1000Base-X SFP Ports, Redundant Dual 48VDC Input Power, -10..+60C Operating Temperature, EN50121-4, EN61000-6-2, EN61000-6-4, CE, FCC certific
Price on request
Available
Available
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
Switch Level
Layer 2, Layer 3
Supported Protocols
Managment Protocols
DHCP Server/Client, TFTP
Reservation protocols
STP, RSTP
IEEE Standard
IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3az for Energy-Efficient Ethernet
System Power Input
Redundant power input
Yes
Input Voltage DC
44..57 V
Power Supply Reserve input Voltage DC
44..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-6-2
Rolling Stock
EN 50121-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.77 kg
Gross Weight
1.3 kg
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
Switch Level
Layer 2, Layer 3
Supported Protocols
Managment Protocols
DHCP Server/Client, TFTP
Reservation protocols
STP, RSTP
IEEE Standard
IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3az for Energy-Efficient Ethernet
System Power Input
Redundant power input
Yes
Input Voltage DC
44..57 V
Power Supply Reserve input Voltage DC
44..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-6-2
Rolling Stock
EN 50121-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.77 kg
Gross Weight
1.3 kg
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
Switch Level
Layer 2, Layer 3
Supported Protocols
Managment Protocols
DHCP Server/Client, TFTP
Reservation protocols
STP, RSTP
IEEE Standard
IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3az for Energy-Efficient Ethernet
System Power Input
Redundant power input
Yes
Input Voltage DC
44..57 V
Power Supply Reserve input Voltage DC
44..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-6-2
Rolling Stock
EN 50121-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.77 kg
Gross Weight
1.3 kg
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
Switch Level
Layer 2, Layer 3
Supported Protocols
Managment Protocols
DHCP Server/Client, TFTP
Reservation protocols
STP, RSTP
IEEE Standard
IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3az for Energy-Efficient Ethernet
System Power Input
Redundant power input
Yes
Input Voltage DC
44..57 V
Power Supply Reserve input Voltage DC
44..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-6-2
Rolling Stock
EN 50121-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.77 kg
Gross Weight
1.3 kg
