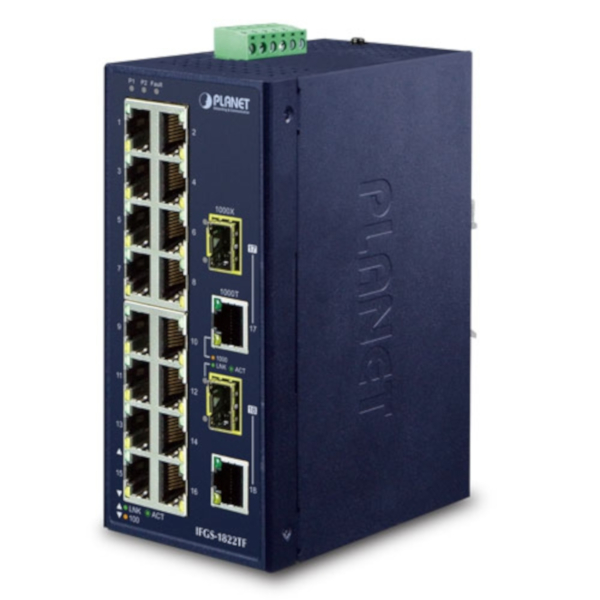

IFGS-1822TF
Planet
SKU: 56826000
Industrial DIN-Rail Unmanaged Switch, 16x100Base(TX), 2x1000 TP/SFP Combo ports, Dual redundant 12-48VDC/24VAC Input Voltage, 6KV ESD Protection, -40..+75C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
SFP 100/1000 Mbit/s Ports
2
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet
System Power Input
Input Voltage DC
12..48 V
Input Voltage AC
24..24 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
66 mm
Depth
107 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
