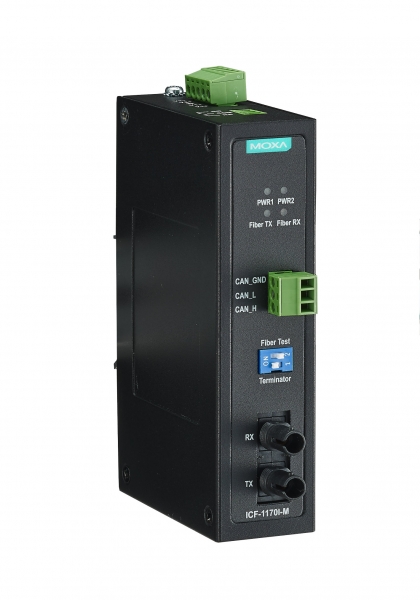

ICF-1170I-M-ST

ICF-1170I-M-ST

MOXA
SKU: 05506200
Industrial CANbus to Fiber Optic Converter, ST Multi-mode, with 2kV 2-way Galvanic Isolation
Price on request
Available
Available

Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
ST
Fiber
Type of Fibre Optic
multi-mode
Industrial Interfaces
CAN Port
1
Supported Protocols
Industrial Protocols
CAN
LED / Controls
LED
TX LED, RX LED, PWR1, PWR2
Setup of Operation Mode
By Switches
Connectors
Connectors
DC input (terminal block), CAN (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
30.3 mm
Depth
70 mm
Height
115 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
EN 55022, FCC Part 15
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Freefall
IEC 60068-2-32
Safety
UL 508, EN 60950-1
Dimensions
Gross Weight
0.32 kg
