Industrial Communications

Converters and Repeaters

ICP-DAS CAN Converters and Repeaters

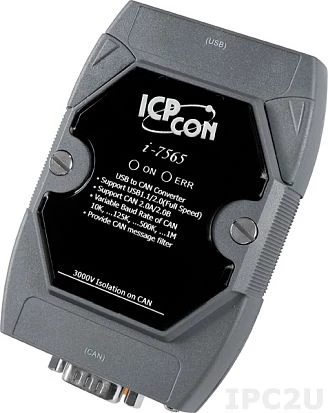

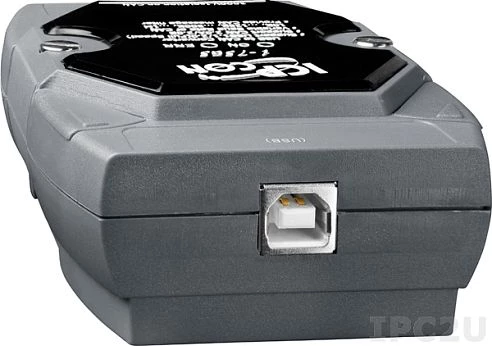

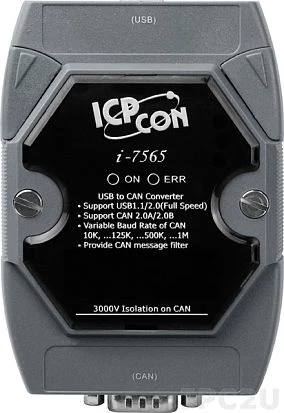

I-7565-G

I-7565-G

SKU: 03834100

USB to CAN Converter

Price on request

Interfaces

USB Total

1

Industrial Interfaces

CAN Port

1

Supported Protocols

Industrial Protocols

CAN

Connectors

Connectors

DB9, 1xUSB

Cables

Included Cables

CA-USB18(1.8M Cable)x1

System Power Input

Input Voltage DC

5..5 V

Operating Conditions

Operating Temperature

-25..75 °C

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

DIN-Rail mount

Dimensions and weight

Width

72 mm

Depth

33 mm

Height

122 mm

Dimensions

Net Weight

0.16 kg

Gross Weight

0.32 kg

Interfaces

USB Total

1

Industrial Interfaces

CAN Port

1

Supported Protocols

Industrial Protocols

CAN

Connectors

Connectors

DB9, 1xUSB

Cables

Included Cables

CA-USB18(1.8M Cable)x1

System Power Input

Input Voltage DC

5..5 V

Operating Conditions

Operating Temperature

-25..75 °C

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

DIN-Rail mount

Dimensions and weight

Width

72 mm

Depth

33 mm

Height

122 mm

Dimensions

Net Weight

0.16 kg

Gross Weight

0.32 kg

Interfaces

USB Total

1

Industrial Interfaces

CAN Port

1

Supported Protocols

Industrial Protocols

CAN

Connectors

Connectors

DB9, 1xUSB

Cables

Included Cables

CA-USB18(1.8M Cable)x1

System Power Input

Input Voltage DC

5..5 V

Operating Conditions

Operating Temperature

-25..75 °C

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

DIN-Rail mount

Dimensions and weight

Width

72 mm

Depth

33 mm

Height

122 mm

Dimensions

Net Weight

0.16 kg

Gross Weight

0.32 kg

Interfaces

USB Total

1

Industrial Interfaces

CAN Port

1

Supported Protocols

Industrial Protocols

CAN

Connectors

Connectors

DB9, 1xUSB

Cables

Included Cables

CA-USB18(1.8M Cable)x1

System Power Input

Input Voltage DC

5..5 V

Operating Conditions

Operating Temperature

-25..75 °C

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

DIN-Rail mount

Dimensions and weight

Width

72 mm

Depth

33 mm

Height

122 mm

Dimensions

Net Weight

0.16 kg

Gross Weight

0.32 kg

Documentation

datasheet datasheet-i-7565-g-cr I-7530 Usermanual

Documentation

datasheet datasheet-i-7565-g-cr I-7530 Usermanual

Documentation

datasheet datasheet-i-7565-g-cr I-7530 Usermanual

Documentation

datasheet datasheet-i-7565-g-cr I-7530 Usermanual
