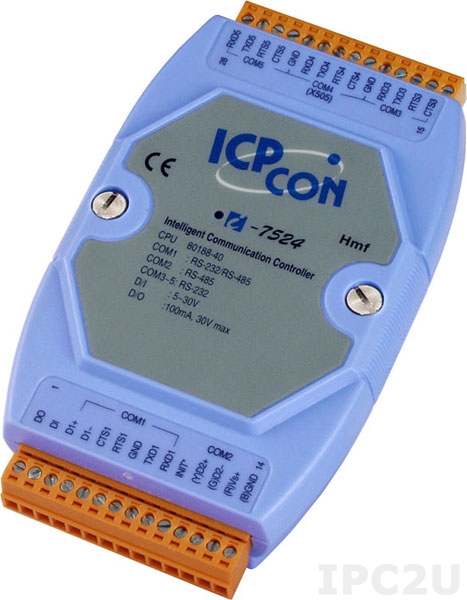

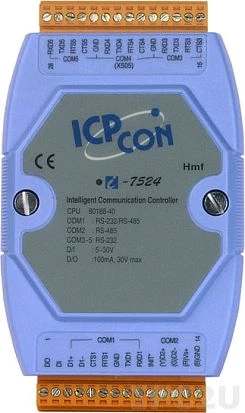

I-7524

ICP DAS
SKU: 01273600
Addressable one RS-485 to one RS-232/485 and three RS-232 Converter, cable CA-0910x1
Price on request
Available on order
Available on order
Interfaces
COM Total
5
RS-232
3
RS-485
1
RS-232/485
1
Digital Input
Total channels of digital input
1
Level of Logic "1"
0~1 V
Level of Logic "0"
3.5~30 V
Type
Wet contact
Digital Output
Total channels of digital output
1
Type
Open collector
Output voltage
0~30 V
Max. load current
100 mA
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Dimensions
Net Weight
0.16 kg
Gross Weight
0.35 kg
