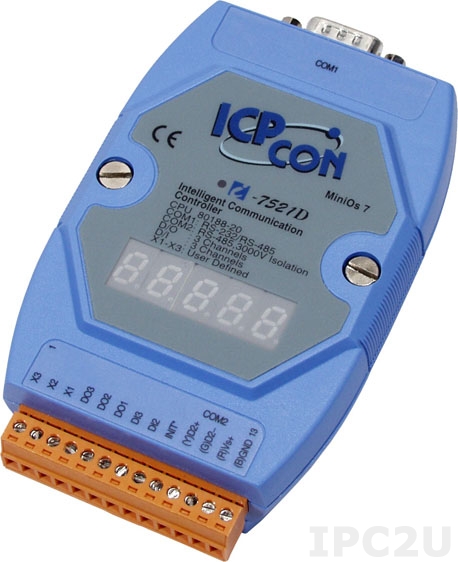

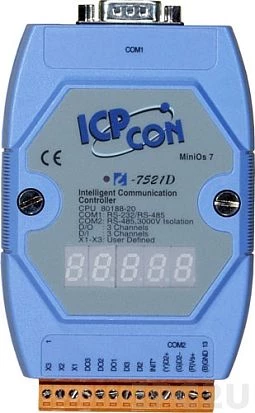

I-7521D
ICP DAS
SKU: 01169200
Addressable RS-485 to RS-232/485 Converter, cable CA-0910Fx1
Price on request
Available
Available
Interfaces
COM Total
2
RS-485
1
RS-232/485
1
Isolation of COM Ports
3 kV (RS-485)
Digital Input
Total channels of digital input
2
Level of Logic "1"
0~1 V
Level of Logic "0"
3.5~30 V
Type
Wet contact
Digital Output
Total channels of digital output
3
Type
Open collector
Output voltage
0~30 V
Max. load current
100 mA
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Dimensions
Net Weight
0.16 kg
Gross Weight
0.35 kg
