HPPC-12-10X7211

HPPC-12-10X7211

NEXCOM
SKU: 80183500

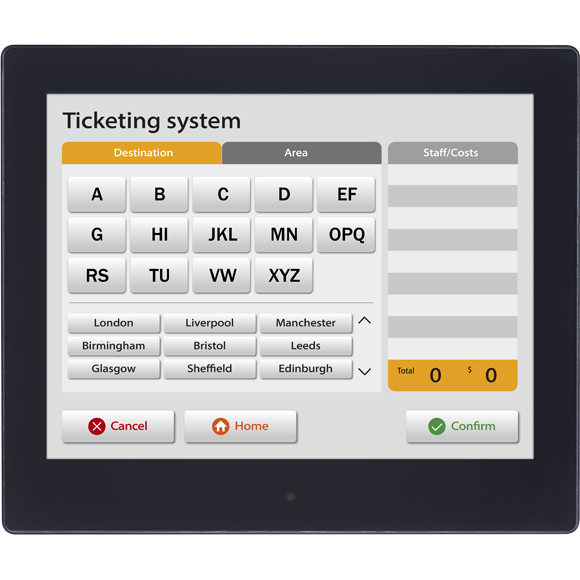

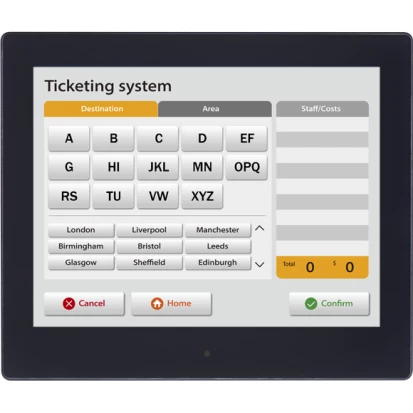

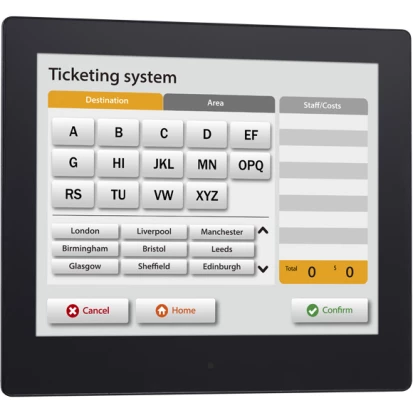

12.1" High Brightness Panel PC, 1024x768, 1300cd/m2, PCAP Touch, Optical Bonding, Intel Atom X7211RE 3.2GHz CPU, Up to 32GB DDR4 RAM, HDMI, 2xGbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xCOM, Audio, 1xM.2 Key-M, 1xMiniPCIe, 12-24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
1300 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Amston Lake
Processor Installed
Intel Atom x7211RE
Socket
FCBGA1264
Max CPU frequency
3.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

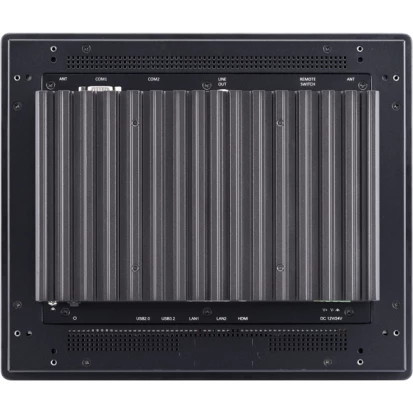

DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
438 mm
Height
346 mm
Depth
227 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
EMI
EN 55032, EN 55035
Safety
EN 62368-1 (LVD)
Dimensions
Net Weight
3.08 kg
Gross Weight
4.01 kg
Construction
