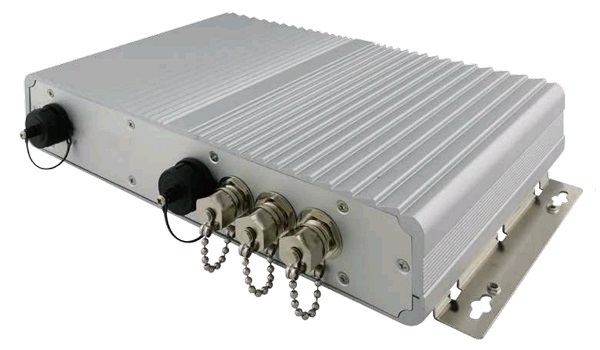

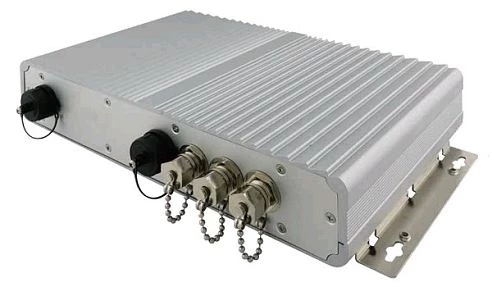

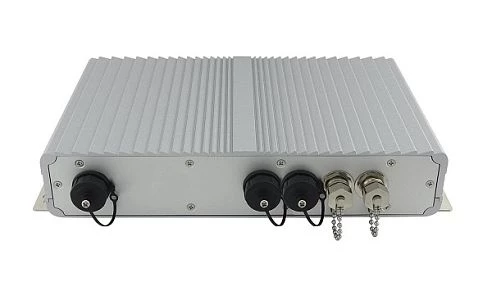

F65EAC-IK32
Winmate
SKU: 07997900
Fanless Full IP65 Rugged Box PC with Intel Core i5-7200U 2.5GHz, 4GB DDR4 RAM, VGA, 2xGB LAN, 1xCOM, 2xUSB, mini-PCIe, 64GB M.2 SSD MLC, 9...36VDC
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP65
Type
Fanless
CPU
Processor Installed
Intel Core i5
Max CPU frequency
2.5 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Ethernet
Controller Type
Intel 82574L 10/100/1000 Mbps, Intel 82579LM 10/100/1000Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-422/485
1
USB Total
3
USB 2.0
3
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Extension Slots
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, 2xUSB
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Dimensions and weight
Width
260 mm
Height
50 mm
Depth
168 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5Hz~500Hz / 1Grms/3 Axis
Shock
15G, 11 ms duration
Dimensions
Net Weight
3.2 kg
Gross Weight
4 kg
