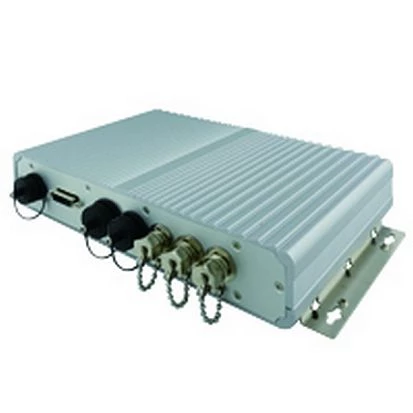

F65EAC-IH32
Winmate
SKU: 07852400
Fanless Full IP65 Rugged Box PC with Intel Core i5-5200U 2.2GHz, 4GB DDR3 RAM, VGA, 4xGB LAN, 2xCOM, 3xUSB, mini-PCIe, 64GB MLC mSATA SSD, 9...36VDC
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP65
Type
Fanless
CPU
Processor Installed
Intel Core i5-5200U
Max CPU frequency
2.7 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel 82574L 10/100/1000 Mbps, Intel 82579LM 10/100/1000Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
USB Total
2
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
7xM12
System Power Input
Input Voltage DC
9 V
Power Consumption
50 W
Software
Operating System Compatibility
Windows 7, Windows 8.1, Windows 10 IoT Enterprise
Dimensions and weight
Width
260 mm
Height
50 mm
Depth
168 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5Hz~500Hz / 1Grms/3 Axis
Shock
15G, 11 ms duration
Dimensions
Net Weight
3.2 kg
Gross Weight
4 kg
