EDS-208A-T

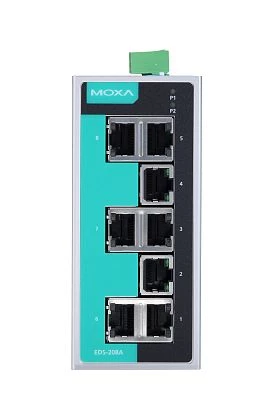

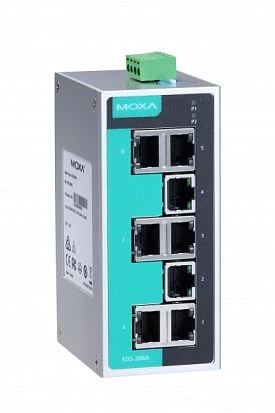

Industrial switch EDS-208A-T by MOXA is the most ruggedized model among unmanaged switches with 8 communication ports of 10/100 Base TX standard. The device is provided in an industrial grade metal housing and has a dual power supply circuit. It supports the extended operating temperature range and can withstand aggressive environment. Its reliability is confirmed by the field-specific certificates. The switch features rich software functionality of its ancestors. 8-port switch EDS-208A-T: description and features: The switch is capable of operation in full-duplex and half-duplex communication modes. There are built-in functions of speed auto negotiation and interface type auto detection (Auto MDI/MDI-X). IEEE 802.3x Flow Control standard supports direct and backward flow control function (Back Pressure). There is built-in protection against broadcast storms (DIP switches). The dual power input will automatically activate a backup accumulator. The wide input voltage range (DC 9.6…60) makes the choice of power sources easier. Moreover, the switch consumes only 2.64 W (111 mA at 24 V). The letter ‘T’ in the product name stands for the device capability of stable operation at temperatures ranged from -40 to +75 °С. This feature allows ignoring harsh weather and production conditions. The device is protected from drops, shocks and vibrations (МЭК-60068/ IEC 60068), voltage spikes, static discharges and impulse interference (EN-55022, EN-61000-4, FCC). Mean time between failures (MTBF standard) exceeds 270 years. Thanks to the innovative design solutions, the industrial switch EDS-208A-T by MOXA has successfully passed all field-specific tests and conforms to the strict requirements of industrial automation systems. The device is certified for application at facilities of land (NEMA TS2), railway (EN-50121) and marine transport (DNV, GL, LR, ABS, NK), as well as in the explosive hazardous environment of oil and gas recovery industry (UL Class I Div. 2, ATEX Zone 2).
