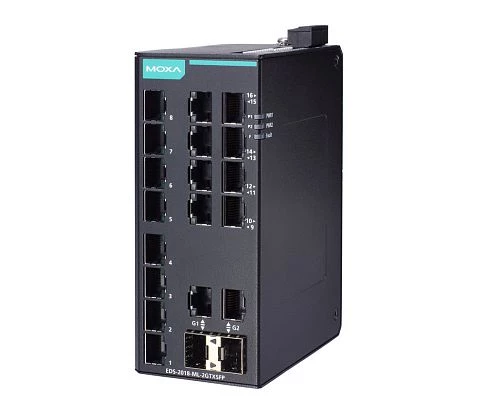

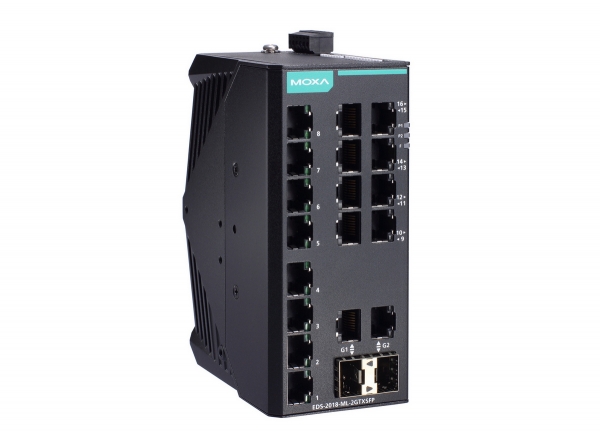

EDS-2018-ML-2GTXSFP
MOXA
SKU: 66517800
Unmanaged Gigabit Ethernet switch with 16 x 10/100BaseT(X) ports, 2 x 10/100/1000BaseT(X) or 100/1000BaseSFP ports, QoS, relay output, -10 to 60C operating temperature
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
18
10/100 Mbit/s
16
Type 10/100 Mbit/s
16xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP)
Switch Properties
Managed
No
Switch Level
Layer 2
Supported technologies
QoS
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size
8000
Packet Buffer Size
4 kBit
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Expansion Module
Supported Module
SFP-1G
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
58 mm
Depth
95 mm
Height
135 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032, EN 55035
Rolling Stock
EN 50121-4
Safety
UL 61010-2-201, EN 62368
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.91 kg
Gross Weight
0.91 kg
