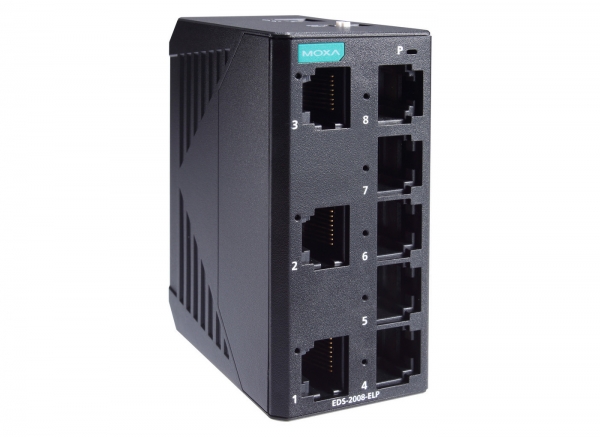

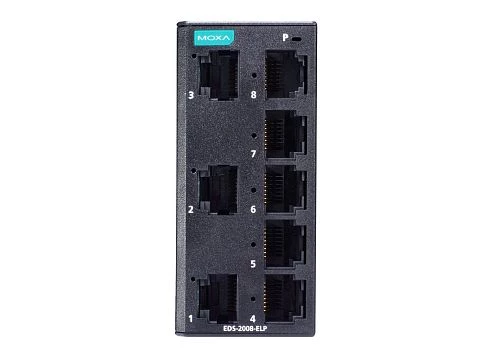

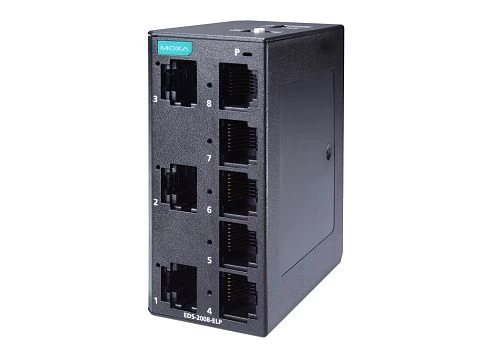

EDS-2008-ELP
MOXA
SKU: 08697800
8-Port Entry-level Unmanaged Switch, 8 Fast TP ports, , plastic, -10 to 60C, operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
Supported technologies
QoS
Supported functions
Broadcast Storm Protection, Flow Control, Back pressure flow control
MAC Table Size
8000
Packet Buffer Size
4 kBit
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
9..60 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
36 mm
Depth
65 mm
Height
81 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032, EN 55035
Safety
UL 61010-2-201, EN 62368-1 (LVD)
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.17 kg
Gross Weight
0.17 kg
