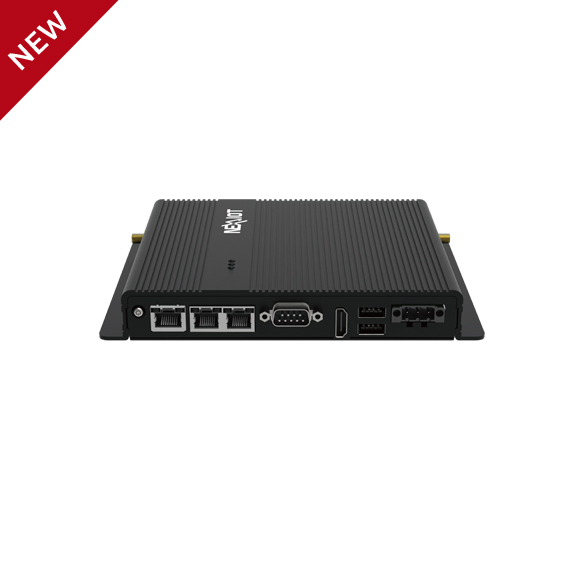

ECM-S50A04-02-X
NEXCOM
SKU: 80254300
Fanless EtherCAT Controller, Intel N-Series N97 3.0GHz CPU, 8GB DDR5 RAM, 128GB M.2 SATA SSD, HDMI, 2x2.5GbE LAN, 1xRJ45 EtherCAT, 2xUSB 3.2, 1xCOM, 1xM.2 Key-B (LTE), 1xM.2 Key-E (WiFi/BT), 12/24VDC-in, Ubuntu 22.04 with NexRTOS
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i225IT, Intel i225V
Total Ethernet
3
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2230 E, 3052 B, 3042 B, 2280 B, 2242 B
LED / Controls
LED
Battеry Status
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 3xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Ubuntu
Supported Software
NexECM
Dimensions and weight
Width
186 mm
Height
26 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-40..60 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.9 kg
Gross Weight
1.4 kg
