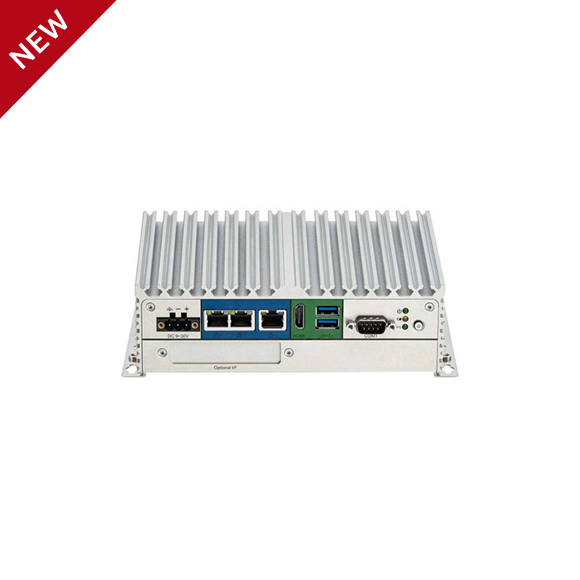

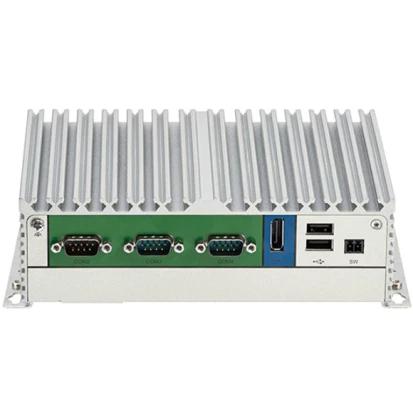

ECM-S110A01-X
NEXCOM
SKU: 80253100
Fanless EtherCAT Controller, Intel N-Series N97 3.6GHz CPU, 8GB DDR5 RAM, 128GB M.2 SSD, HDMI/DP, 3x2.5GbE LAN, 4xCOM, 2xUSB 3.2, 2xUSB 2.0, 8-bit GPIO Optional, 1xMiniPCIe (mSATA/WiFi/LTE), 9-30VDC-in, Ubuntu 22.04 with NexRTOS
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
3
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2280 B, 2242 B
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, Programmable LED Light Bar Indicator
Controls
On/Off
Connectors
Connectors
4xDB9, HDMI, 3xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Ubuntu
Supported Software
NexECM
Dimensions and weight
Width
185 mm
Height
56 mm
Depth
131 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Safety
UL
Dimensions
Net Weight
3.1 kg
Gross Weight
3.8 kg
