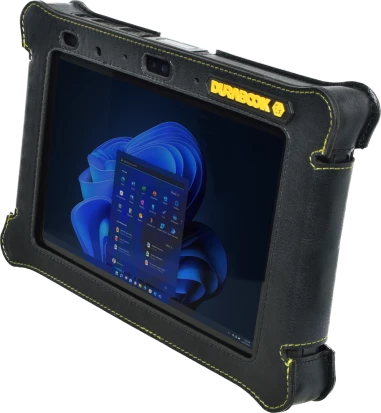

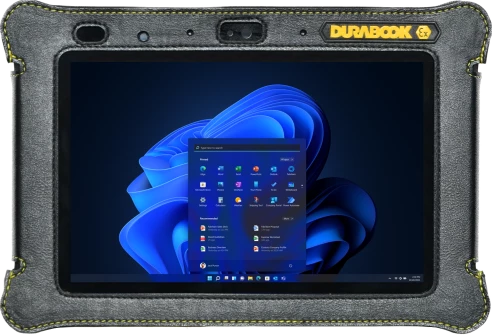

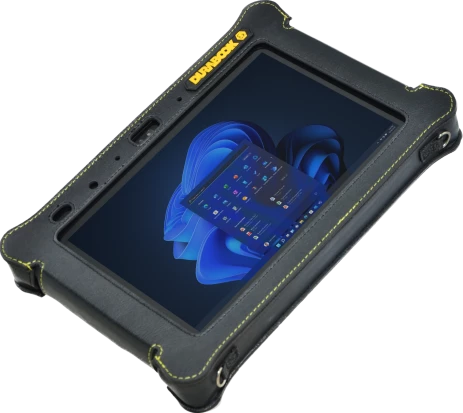

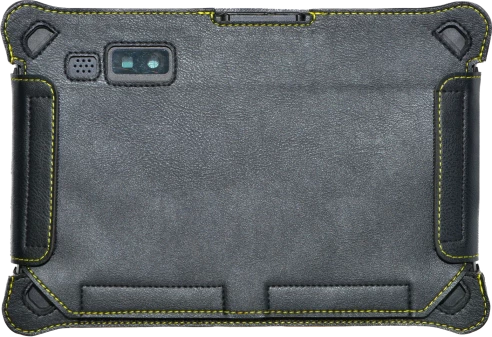

Durabook R8-EX Basic
Durabook
SKU: 11028400
8" 1280 x 800 Touchscreen Display, Intel Pentium 8500, with 8GB RAM, 128GB SSD, Wi-Fi 6E, Bluetooth v5.3, 2MP Front Camera, USB Type C (Support DP), Thunderbolt 4, IP66, Win11 Pro, ATEX
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis, Magnesium Alloy
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Pentium Gold 8500
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Intel Iris Xe Graphics
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
1
USB v3.x
1
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
1
Additional Functions
Camera Frontside
2 MP
GPS
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.3
Connectors
Connectors
Audio (in/out/Mic), SIM Card Slot, MicroSD card slot, USB type C
System Power Input
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3600 mA*h
RunTime Battery 1
8 h
Software
Operating System Installed
Windows 11
Dimensions and weight
Width
227 mm
Height
150 mm
Depth
20.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
MIL-STD 810H
Shock
MIL-STD 810H
Standards and Certifications
Certifications
CE, EAC
Oil And Gas
ATEX Zone 2 Ex nC IIC
Dimensions
Net Weight
1.2 kg
Gross Weight
1.66 kg
Construction
Construction Chassis
Aluminium Chassis, Magnesium Alloy
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Pentium Gold 8500
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Intel Iris Xe Graphics
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
1
USB v3.x
1
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
1
Additional Functions
Camera Frontside
2 MP
GPS
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.3
Connectors
Connectors
Audio (in/out/Mic), SIM Card Slot, MicroSD card slot, USB type C
System Power Input
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3600 mA*h
RunTime Battery 1
8 h
Software
Operating System Installed
Windows 11
Dimensions and weight
Width
227 mm
Height
150 mm
Depth
20.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
MIL-STD 810H
Shock
MIL-STD 810H
Standards and Certifications
Certifications
CE, EAC
Oil And Gas
ATEX Zone 2 Ex nC IIC
Dimensions
Net Weight
1.2 kg
Gross Weight
1.66 kg
Construction
Construction Chassis
Aluminium Chassis, Magnesium Alloy
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Pentium Gold 8500
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Intel Iris Xe Graphics
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
1
USB v3.x
1
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
1
Additional Functions
Camera Frontside
2 MP
GPS
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.3
Connectors
Connectors
Audio (in/out/Mic), SIM Card Slot, MicroSD card slot, USB type C
System Power Input
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3600 mA*h
RunTime Battery 1
8 h
Software
Operating System Installed
Windows 11
Dimensions and weight
Width
227 mm
Height
150 mm
Depth
20.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
MIL-STD 810H
Shock
MIL-STD 810H
Standards and Certifications
Certifications
CE, EAC
Oil And Gas
ATEX Zone 2 Ex nC IIC
Dimensions
Net Weight
1.2 kg
Gross Weight
1.66 kg
Construction
Construction Chassis
Aluminium Chassis, Magnesium Alloy
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless
Display
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Pentium Gold 8500
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Intel Iris Xe Graphics
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
1
USB v3.x
1
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
1
Additional Functions
Camera Frontside
2 MP
GPS
Optional
NFC
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.3
Connectors
Connectors
Audio (in/out/Mic), SIM Card Slot, MicroSD card slot, USB type C
System Power Input
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3600 mA*h
RunTime Battery 1
8 h
Software
Operating System Installed
Windows 11
Dimensions and weight
Width
227 mm
Height
150 mm
Depth
20.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
MIL-STD 810H
Shock
MIL-STD 810H
Standards and Certifications
Certifications
CE, EAC
Oil And Gas
ATEX Zone 2 Ex nC IIC
Dimensions
Net Weight
1.2 kg
Gross Weight
1.66 kg
