DL-101S-E-W

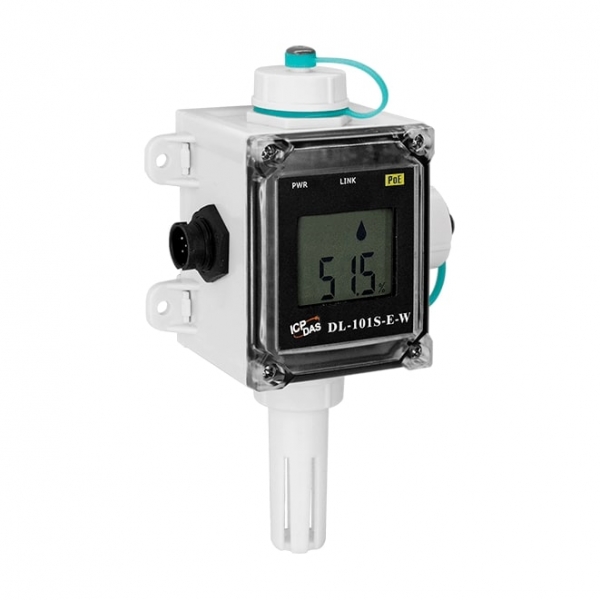

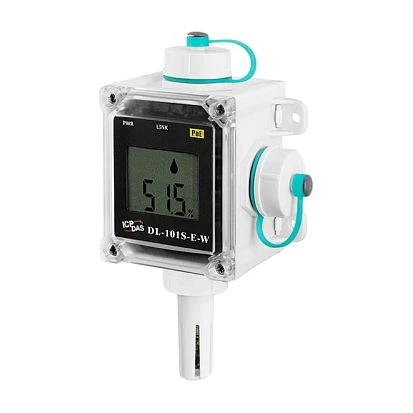

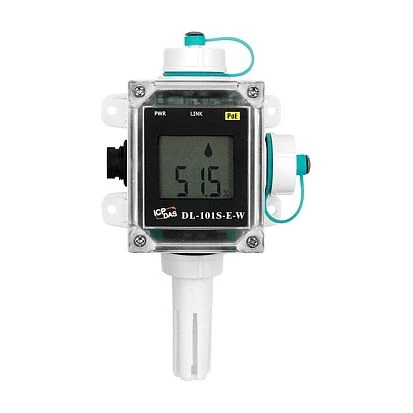

DL-101S-E-W

ICP DAS
SKU: 09098800
Remote Temperature/Humidity/Dew Point Data Logger with Safety Alarm (White Cover) (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP66
Display
Display Type
LCD Character
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Ethernet
10/100 Mbit/s
1
System Power Input
Power over Ethernet (PoE)
IEEE 802.3af
Input Voltage DC
12..48 V
Sensors
Measuring Range
-20...+60 °С
Resolution
0.1 °C
Accuracy (+/-)
0.4 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Measuring Range
Calculated using temperature and relative humidity
Digital Output
Total channels of digital output
2
Type
Signal Relay
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions and weight
Width
100 mm
Depth
56 mm
Height
157 mm
Dimensions
Gross Weight
0.5 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP66
Display
Display Type
LCD Character
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Ethernet
10/100 Mbit/s
1
System Power Input
Power over Ethernet (PoE)
IEEE 802.3af
Input Voltage DC
12..48 V
Sensors
Measuring Range
-20...+60 °С
Resolution
0.1 °C
Accuracy (+/-)
0.4 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Measuring Range
Calculated using temperature and relative humidity
Digital Output
Total channels of digital output
2
Type
Signal Relay
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions and weight
Width
100 mm
Depth
56 mm
Height
157 mm
Dimensions
Gross Weight
0.5 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP66
Display
Display Type
LCD Character
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Ethernet
10/100 Mbit/s
1
System Power Input
Power over Ethernet (PoE)
IEEE 802.3af
Input Voltage DC
12..48 V
Sensors
Measuring Range
-20...+60 °С
Resolution
0.1 °C
Accuracy (+/-)
0.4 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Measuring Range
Calculated using temperature and relative humidity
Digital Output
Total channels of digital output
2
Type
Signal Relay
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions and weight
Width
100 mm
Depth
56 mm
Height
157 mm
Dimensions
Gross Weight
0.5 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP66
Display
Display Type
LCD Character
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Ethernet
10/100 Mbit/s
1
System Power Input
Power over Ethernet (PoE)
IEEE 802.3af
Input Voltage DC
12..48 V
Sensors
Measuring Range
-20...+60 °С
Resolution
0.1 °C
Accuracy (+/-)
0.4 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Measuring Range
Calculated using temperature and relative humidity
Digital Output
Total channels of digital output
2
Type
Signal Relay
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions and weight
Width
100 mm
Depth
56 mm
Height
157 mm
Dimensions
Gross Weight
0.5 kg

Documentation
Quick Start DL-100S-E, DL-101S-E User Manual DL-100S-E, DL-101S-E, DL-110-E, DL-120-E
Documentation
Quick Start DL-100S-E, DL-101S-E User Manual DL-100S-E, DL-101S-E, DL-110-E, DL-120-E
Documentation
Quick Start DL-100S-E, DL-101S-E User Manual DL-100S-E, DL-101S-E, DL-110-E, DL-120-E
Documentation
Quick Start DL-100S-E, DL-101S-E User Manual DL-100S-E, DL-101S-E, DL-110-E, DL-120-E
