DL-100T485-W

DL-100T485-W

ICP DAS
SKU: 06054500

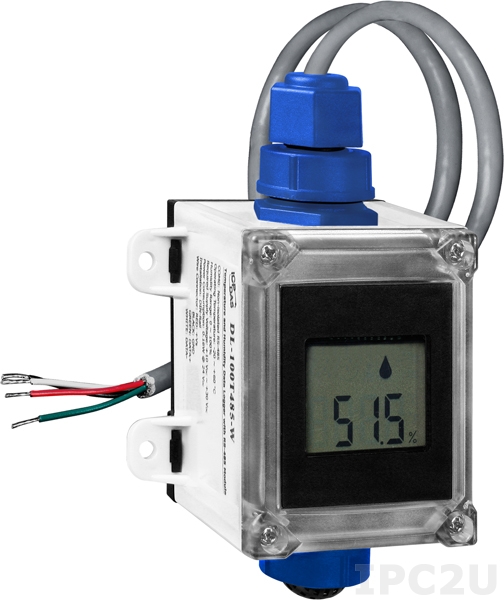

DCON Protocol Based IP66 RS-485 Remote Temperature and Humidity Data Logger with LCD Display, White Cover, RoHS
End-of-life product

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP66
Display
Display Type
LCD Character
Supported Protocols
Industrial Protocols
DCON slave
System Power Input
Input Voltage DC
10..30 V
Interfaces
RS-485
1
Sensors
Measuring Range
-20...+60 °С
Resolution
0.1 °C
Accuracy (+/-)
0.4 °C
Measuring Range
0…100%
Resolution
0 %
Accuracy (+/-)
0 %
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions and weight
Width
55 mm
Depth
82 mm
Height
126 mm
Dimensions
Gross Weight
0.3 kg

Documentation
datasheet dl-100t485-w_dl-100tm485-w Datasheet UserManual
